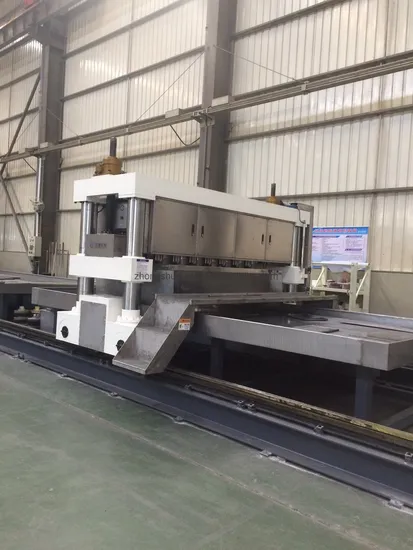

High Precision Surface Gringer Machine/Fsg100220znc Large Grinding Machine

Product Description

Product description:
Technical parameter :
Specification:

Model	Unit	FSG100220ZNC
Working area
Table size	mm	1000*2200
Max. ground area	mm	1000*2200
Max. gound height	mm	670(830/1000special designed column)
Magnetic chuck size(optional)	mm	1000*1000*2
Max. loading capacity(include chuck)	kg	4000
Three axis motion
Speed of table longitudinal move	mm/min	5~25
Cross Motion:
Intermittent feed rate	mm/t	1~50
Rapid speed	mm/min	50~2000
Feed of MPG	mm/div	0.005
Vertical Motion:
Auto down feed rate	mm/div	0.005~0.05(optional 0.001~0.01)
Rapid down speed	mm/min	50~2000
Feed of MPG	mm/div	0.05(optional 0.001)
Grinding wheel
Rotating speed	r/min	960(50HZ) 1150(60HZ) (Optional variable speed)
Grind wheel size	mm	500*100*203
Grind wheel size for export	mm	500*100*305
Device capacity
Spindle motor power	kw	18.5/22
Oil pump motor	kw	7.5
Y/Z servo motor	kw	3
Total rated powe	KVA	45
Dimensions and weight
Floor space (L*W*H)	cm	720*520*250
Gross weight	kg	14000

Standard accessories :

tools and tool box

Coolant tank

balancing arbor

wheel flange and wheel

wheel extrator

standard dressing stand(not include diamond pen)

leveling wedge

PLC & 7''colorful touch panel(HMI)

YZ axis MPG

Optional accessories :

special designed column( for max work piece height 1000mm)

magnetic chuck 1000*1000mm*2pc (for 100220ZNC)

Magnetic separator and paper filter

2 axis DRO

Hydraulic wheel dresser

Hydraulic tank guard

spare wheel chuck

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
