Empty 0.2L Oxygen Breath Aluminium Cylinder

Product Description

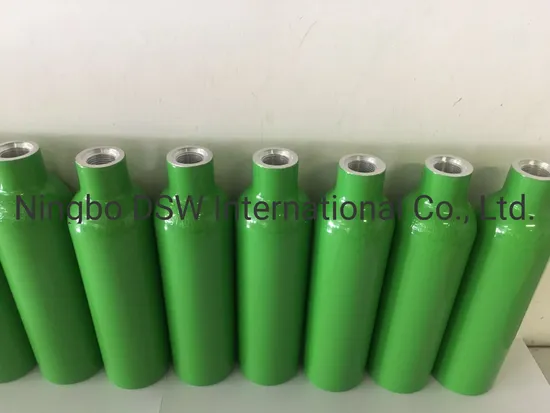

0.2L oxygen Aluminum Cylinder
Main Feature:
Model Number: LW-50-0.2-200
water capacity 0.2L
Standard:GB11640-2011(Aluminum6061)
Thickness of seamless:3.4+0.5mm
Diameter:50mm
Height: 185mm
working pressure:200bar
test pressure: 300bar
Cylinders are made from high strength Aluminum Alloy 6061, reliable in durability, fracture toughness and resistance to tearing and cracking.
Highly corrosion-resistant interior and exterior-ideal for wet gases.
Cylinders perform well at low temperatures.
Lightweight--up to 40 percent lighter than comparable steel cylinders and in Consistent weight, consistent thickness resist damage.
Brushed external surface provides a low-maintenance finish.
Cylinders meet or exceed all regulatory standards worldwide.
Cylinders cycle-tested in excess of 120,000 cycles at service pressure. Excess of 12000 cycles at test pressure.
Minimum burst pressure tested to 2.5 times service pressure without failure.
* Valve & Threads can be specified & installed Upon Request.
* Standard Finishing is RAL300 Red Powder Coated.
* Markings according to Standard Specifications, Additional Markings Available Ipon Request.
certificate:
specification:

Type	(mm) Outside Diameter	(L) Water Capacity	(mm) Height (Withoutvalve)	(Kg) Weight(Without valve,cap)	(Mpa) Working Pressure	(mm) Design Wall Thickness
LW-60-0.5-20H	60	0.5	285	0.6	200	3.1
LW-75-0.7-15H	75	0.7	295	0.9	150	4
LW-82-0.7-15H	82	0.7	235	0.9	150	4.2
LW-89-1.0-15H	89	1.0	269	1.2	150	4.5
LW-89-1.4-15H	89	1.4	345	1.4	150	4.5
LW-108-1.0-15H	108	1.0	210	1.3	150	5.5
LW-108-1.4-15H	108	1.4	264	1.6	150	5.5
LW-108-2.0-15H	108	2.0	346	2.1	150	5.5
LW-108-2.5-15H	108	2.5	413	2.5	150	5.5
LW-120-2.0-15H	120	2.0	320	2.7	150	6.1
LW-120-2.5-15H	120	2.5	369	3.0	150	6.1
LW-120-2.8-15H	120	2.8	398	3.2	150	6.1
LW-120-3.2-15H	120	3.2	437	3.5	150	6.1
LW-140-4.0-15H	140	4.0	420	4.2	150	7.1
LW-140-5.0-15H	140	5.0	500	4.9	150	7.1
LW-140-6.0-15H	140	6.0	580	5.6	150	7.1
LW-140-8.0-15H	140	8.0	741	7.2	150	7.1
LW-140-5.0-20H	140	5.0	525	6.3	200	9.3
LW-140-6.0-20H	140	6.0	652	7.98	200	9.3
LW-159-10.0-15H	159	10.0	730	8.8	150	8
LW-184-9.0-20H	184	9.0	575	12.0	200	12.2
LW-184-10.0-20H	184	10.0	620	12.9	200	12.2
LW-184-11.0-20H	184	11.0	665	14.2	200	12.2
LW-184-12.0-20H	184	12.0	710	15.4	200	12.2
LW-203-12-15H	203	12.0	567	11.8	150	10.3
LW-203-15-15H	203	20.0	873	17.0	150	10.3
LW-203-21.3-15H	203	21.3	962	19.9	150	10.3
LW-204-12-20H	204	12.0	610	16.5	200	13.4
LW-204-15-20H	204	15.0	735	18.7	200	13.4
LW-204-20-20H	204	20.0	940	23.4	200	13.4
LW-232-29.5-15H	232	29.5	994	30.2	150	11.7
LW-232-30.3-15H	232	30.0	1010	30.5	150	11.7
LW-232-33.4-15H	232	33.4	1126	31.3	150	11.7
LW-232-40.0-15H	232	40.0	1340	36.5	150	11.7
LW-232-20.0-20H	232	20.0	750	26.9	200	15.4
LW-232-26.0-20H	232	26.0	921	30.7	200	15.4
LW-232-30.0-20H	232	30.0	1076	36.4	200	15.4
LW-232-31.5-20H	232	31.5	1096	38.0	200	15.4
LW-232-40.0-20H	232	40.0	1365	44.1	200	15.4
LW-250-40.0-15H	250	40.0	1150	36.7	150	12.6
LW-250-46.4-15H	250	46.4	1305	38.7	150	12.6
LW-250-47.5-15H	250	47.5	1340	42.0	150	12.6
LW-250-50.0-15H	250	50.0	1590	39.0	200	12.6
LW-250-40.0-20H	250	40.0	1227	46.3	200	16.5
LW-250-50.0-20H	250	50.0	1500	56.0	200	16.

Company profile:
Our factory aluminium jar-making co.,ltd. is a professional filter capacitor shell aluminum shell and the development and production of a wholly-owned enterprise. Founded in 1988, now covers an area of 80,000 square meters, staff 320 people, including engineers and technicians 25 people. Since its inception, that is fully committed to the manufacture of aluminum cans , aluminum semi-finished products processing and metallurgy and processing such as special-shaped parts, with a strong technical force and good quality staff, and constantly develop new products, develop new markets,
Growing scale of production. Products not only meet the domestic demand, but also exported to Europe, America and Southeast Asia regions, well received by customers and vendors praise!
Company's existing three series of products, Capacitor aluminum shell and cover, fuel filter housing and shelters, EFI pump casing. The company pays great attention to product quality, strictly follow the concept of lean production and methods of management of production. And has achieved ISO9001:2008quality system.certification.ISO14001:2004, EN ISO7866:2012+AC2014 environmental management system certification and ISO/TS16949: 2009auto parts industry certification.
The company in line to provide customers with the fastest, most comprehensive and efficient services for the purpose, sincerely welcome friends home and abroad to write to.

---
