Hot Sale 50-100mm Sumore Desktop Press Tool Vertical Floor Drilling Drill Machine with CE

Product Description

Product Description

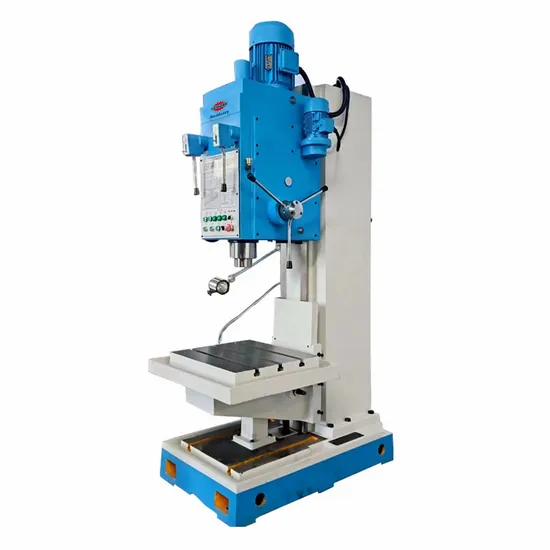

SP5150B Drill Press Drilling Machine 50mm Bench Vertical Drill Press Machine With Factory Price SUMORE
1. Z5150B square column vertical drilling universal machine tool, which can be used for drilling, reaming, countersinking,
countersunk drilling, boring and tapping.
2. The automatic reversal of spindle tapping and inching feed are very convenient for blind holes and fixed depth holes.
3. The machine tool has high efficiency, good rigidity, high accuracy, low noise, wide speed change range, centralized operation, novel appearance and convenient use and maintenance.
4. Multi axis machine can realize simultaneous processing of multiple holes and greatly improve processing efficiency.
Product Parameters

Main technical parameters SP5150B Maximum borehole diameter mm 50 Maximum Feed Resistance N of Main Shaft 1600 Maximum spindle torque N.m 350 Main motor power kw 3 Conicity of main cone hole NO 5 Spindle speed r.p.m 31.5-1400(12step) Feed per spindle revolution mm/rev 0.056-1.80(9step) Spindle stroke mm 250 Spindle box stroke mm 200 Distance from spindle centerline to pillar mm 335 Longitudinal and transverse travel mm of worktable Vertical travel mm of worktable 300 Maximum distance from end face of spindle to worktable mm 750 Table size mm 480*560 Machine tool weight kg 1300 Outline dimension mm 1050*710*2540

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!

---
