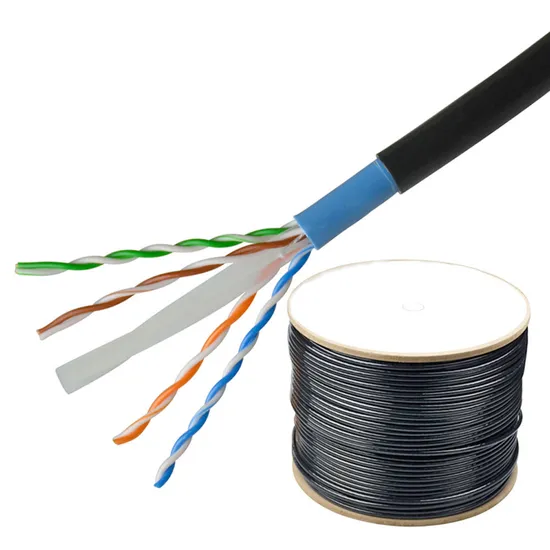

OEM Communication Cable U-UTP Network Indoor UTP CAT6 Cable 305m Roll

Product Description

Product Description OEM Communication Cable U-UTP Cat.6 Network Indoor 23awg Copper UTP Cat6 Cable 305M Roll
Standard:ANSI/TIE/EIA-568B/ISO/IEC11801
Construction:
1.Conductor: Solid copper wire conductor24AWG(0.51mm)for Cat5e23AWG(0.57mm)for Cat6
2.Insulation:PE(Polyethylene)
3.Lay-up:Two cores twisted in pair
4.Insulation color marking
1.pair:blue white with blue line
2.pair:orange white with orange line
3.pair:green white with green line
4.pair:brown white with brown line
5.Sheath:PVC(Polyvinyl Chloride)or LSOH
6.Sheath Color:Blue/Red/Black/Yellow/Grey
Characteristic:
1.Temperature Rating:-15C up to +70C
2.Voltage Rating:300/300V
3.Max.Tensile Strength:100N
4.Impedance:100±152
5.Min inner bending radius:4 x overall diameter
6.Behaviour in fire:Flame retardant to IEC60332-1
Application:
Computer network cables are used in data transmissionsystems,like home,school,shoping building public building,government network system
100BASE-T4/100BASE-TX/100VG-ANYLAN
1000BASE-T(Gigabit Ethernet);155/622Mbps ATM
Specification:

TYPE NO.		Conductor AWG	Conductor diameter	Insulation diameter	Max.outer diameter	Unshied& Shied	Unbraid&Braid		Sheath matenal
Ref.		AWG	mm	mm	mm
CAT5e UTP		4X2X24AWG	4X2X0.51mm	0.9 PE	5.1	Unshied	Unbraid		PVC or LSOH
CAT5e FTP		4X2X24AWG	4X2X0.51mm	1.1 PE	6.2	Shied	Unbraid		PVC or LSOH
CAT5e SFTP		4X2X24AWG	4X2X0.51mm	1.1 PE	6.6	Shied	Braid		PVC or LSOH
CAT6 UTP		4X2X23AWG	4X2X0.57mm	1.0 PE	6.5	Unshied	Unbraid		PVC or LSOH
CAT6 FTP		4X2X23AWG	4X2X0.57mm	1.3 PE	7.5	Shied	Unbraid		PVC or LSOH
CAT6 SFTP		4X2X23AWG	4X2X0 57mm	1.3 PE	7.8	Shied	Braid		PVC or LSOH
Electrical Characteristics CAT6 UTP/FTPISFTP
Frequency		lmpedance	Retur Loss	Attenuation	Next	PS-Next	Elfext	PS-Elfext
MHz		ohm	Db≥	≤Db/100m	≥Db/100m	≥Db/100m	≥Db/100m	≥Db/100m
1		100±15	20.0	2.0	74.3	72.3	67.8	64.8
4		100±15	23.0	3.8	65.3	63.3	55.8	52 7
10		100±15	25.0	6.0	59.3	57.3	47.8	44 6
16		100±15	25.0	7.6	56.2	54.3	43.7	40.7
20		100±15	25.0	8.5	54.8	52.8	41.8	38.8
31.2		100±15	24.0	10.7	51.9	49.9	37.9	34 9
62.5		100±15	22.0	15.4	47.4	45.4	31.9	28 9
100		100±15	20.0	19.8	44.3	42.3	27.8	24.8
155		100±15	19.0	25.2	41.5	39.5	23.9	20.9
200		100±15	18.0	29.0	39.8	37.8	21.8	18.8
250		100±15	17.0	32.8	38.3	36.3	19.8	16.8

---
