US$15,000.00-25,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Liquid, Liquid with Suspended Solids
Application Area
Daily Chemical
Control System
Button Control
Speed Control
Variable Speed
Speed Range
60 R/min & Above
Temperature Control
With Heating
Type
High Shear Homogenizer
Range of Spindle Speed(r.p.m)
1 - 65 r.p.m
Function
Mixing, Homogenizing, Emulsifying
Max. Loading Volume (L)
300L
Voltage
220-480V/50-60Hz 3phase Customize
Stirrer Type
Frame Oar Wall Scraper Mixer
Control
Button / PLC Touch Screen Control (Option)
Discharge
Tilting Discharge / Positive Discharge
Jacket
3 Layers, Double Jacket
Heating Method
Electric / Steam Heating
Operating Type
Continuous Operating
Transport Package
Plywoode Case Packing
Specification
3260*2350*2500mm
Production Capacity
30sets/Mouth
Product Description

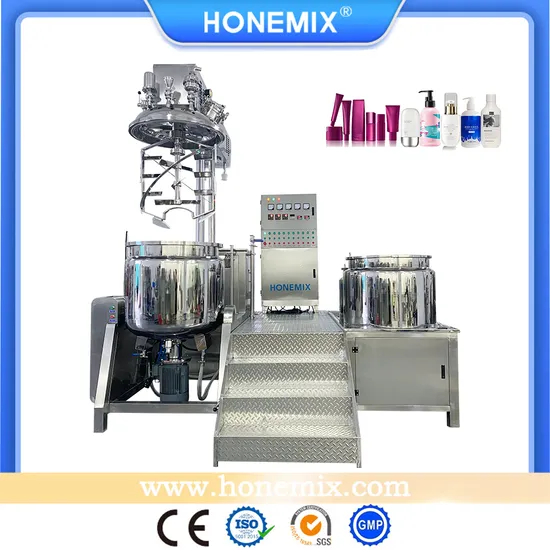

HoneMix 300L Lifting Vacuum Emulsifier mixer High Quality Face Cream And Hand Cream Homogenizer mixerVacuum emulsifying mixer machine consist of Water and Oil pot, Main emulsifying tank, Vacuum system, Tilting discharge system, Hydraulic lifting system(OPTION), Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics products.Detailed Photos Lid PartsMan-HoleMaterial suction inlet
Vacuum presssure gauge
Vacuum port
Vent filter
Positive pressure inlet
Perfume hopper
CIP spray ball
LED Light
Sight window Water and Oil PotMachine equipped A set of water and oil potWater pot capacity: 240LOil pot capacity: 150LPower: 0.75KW, Siemens motor, 1440RPMElectric heating by Water or Conduction OilMixing: High shearing Disperser plates with baffle on the wallHalf open hinged lid for easy operationHelical Ribbon MixerSUS316L Helical Ribbon MixerPTFE scraperFixed propeller45degree blades on opposite angles to make sure mixture completeSiemens motor drive0-65rpm with variable speed controlTWO WAYS Helical Ribbon Mixer
| Working Capacity | Wall Scraper Mixer | Homogenizer | Water and Oil Pot | Disperser |
| 50L | 1.1KW, 0~65RPM | 2.2KW, 0~3600RPM | 45/30L | 0.37/0.37KW, 1440RPM |
| 100L | 1.5KW, 0~65RPM | 4KW, 0~3600RPM | 90/60L | 0.55/0.55KW, 1440RPM |
| 200L | 3KW, 0~65RPM | 5.5KW, 0~3600RPM | 180/120L | 0.75/0.75KW, 1440RPM |
| 300L | 4KW, 0~65RPM | 7.5KW, 0~3600RPM | 270/180L | 1.1/1.1KW, 1440RPM |
| 500L | 5.5KW, 0~65RPM | 11KW, 0~3600RPM | 450/300L | 1.5/1.5KW, 1440RPM |
FAQ1. Are you Factory or Trading company?We are integrated industrial and trade enterprises,Our factory located in an ancient capital Yangzhou, and we found Hone company in Guangzhou to search more business opportunities at domestic and overseas. You could ask to check or test machinesanytime to the factory,we will arrange everything for you.2. Why your machine similar with other supplier?We have been in this industry for more than 10 years.We design machines by ourselves with advanced technology. Appearance just apart of machineQuality and Service is more important than it.3.I'm new in our industry, but I'm planning to setup a factory.What can I do?We offering Turnkey service from A to Z to customers,we will can suggest customer the most suitable machines according to their Formula.Raw material.Support you Manufacturing-Installation-Training Maintenance-Technical Support.We can introduce you supplier of raw materialbottles, labels etc. We could take you to our customer's factory to learn how they produce.We could customize machines according to your real need,We could send our engineer to your factory to install machines and train your worker of operation and maintenance.4. What kind of machines can you supply?We could offer various kinds of machines and whole production line(1)Cream,Paste ProductsCosmetic industry: face cream.bodycreamwashing creamvaseline etc.Food industry: sauce,ketchuptomato pastemayonnaisemustardchocolate etc Chemical industry: welding paste,inkpaint, pigment etcProduction line for them: RO water treatment-vacuum emulsifying machine-storage tanks-filling machine -capping machine-labeling machine-convevor belt-inkjet printer-sealing machine-shrinking machine etc(2) Liquid ProductsShampoo, lotion,liquid soap,detergent,juice,solution etc.Production line for them:RO water treatment-liquid wash mixer-storage tanks-filling machine-capping machine-labellina machine-convevor belt-inkiet printer-sealing machine-shrinking machine etc(2) Liquid ProductsShampoo, lotion,liquid soap,detergent,juice,solution etc.Production line for them:RO water treatment-liquid wash mixer-storage tanks-filling machine-capping machine-labellina machine-convevor belt-inkiet printer-sealina machine-shrinking machine etc(3) Make-up ProductsLipstick,lip gloss, nail polish, marscara etcMachines for them:homogenizer mixer,colliod mill,lipstick filling machinefrezzing machine etc(4) Perfume Products
>>
