Ports
6-Port Fast Ethernet Switch with 4-Port Poe
Data Transmission Port

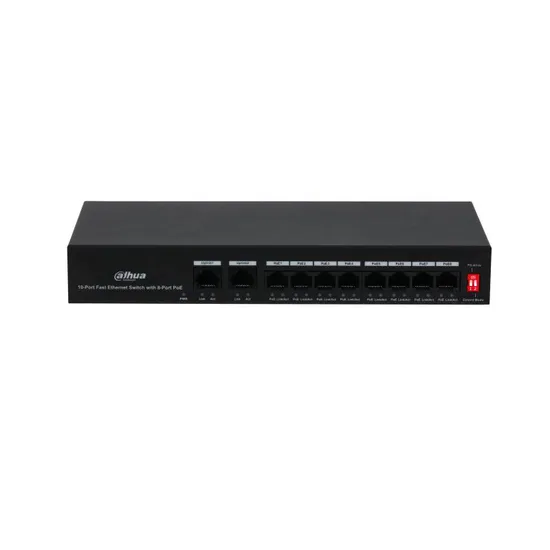

10-Port Fast Ethernet Switch with 8-Port Poe
Power Supply
AC100~AC240V
Operating Humidity
10%~90%
Power Consumption
Idling: 1.0W; Full Load: 65W
Poe Budget
Port1~8 <30W, Whole Poe Budget <65W
Poe Standard
IEEE802.3af, IEEE802.3at
Poe Pin Assignment
Poe: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-)
Switching Capacity
2.0 Gbps
Packet Forwarding Rate
1.49 Mpps
Communication Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3X
Distance
Support 250 M Long Distance Poe Tansmission
ESD
Air Discharge: 8kv Contact Discharge: 6kv
Thunderproof
Common Mode: 6kv Differential Mode: 4kv
Transport Package
Paper Box
Specification
242.5 mm * 122.9 mm * 35.0 mm
Production Capacity
10000PCS/Month
