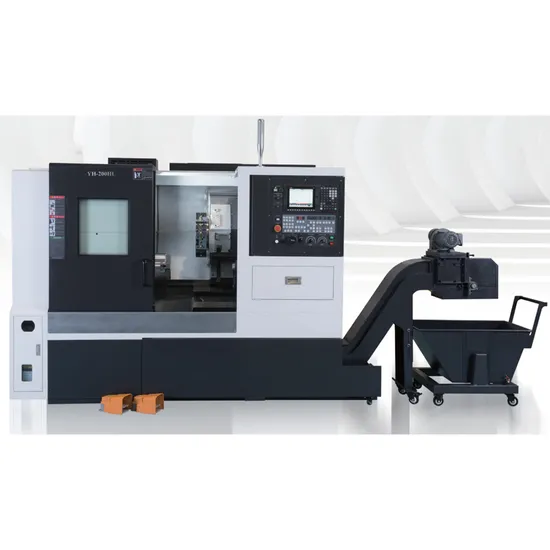

Lathe Machine High-Precision Hard-Track Turret Machine /Yh-200hlm Hard-Track Turning Center

Product Description

Product Description

Model features
45°tiltin g bed structure, with optimum machining stabilityand smooth chipdischarge;
The X and Z axes have a wide hard-track slide with a largespan design, which provides unique stability during heavycutting, subject to the hardened and precision grindin andmanual fit-scraper;
The bed is integrally made from HT300 castings, withhigh-rigidity construction;
The rapid feed rate of X/Z axis is 24 m/min;
Servo turet features
High-igidity overall design
Equipped with high-precision three-plate radial dutch
Ensure positioning accuracy and repeat positioningaccuracy_
Equipped with servomotor-driven turret rotation B-directional or dose-lo-anywhere tool selection
Clutch release and dlamping by oil-pressure principle
Cooperate with proximity switch to feedback the clutchactlon signal
Fast and precise tool change
10.2 seconds for adjacent tool change,0.5 seconds forsymmetrical tool change Product Parameters

Main parameters(Unit: mm)
Parameters Model			YH-200HL	YH-200HLM
Main parameters		Turning diameter on the bed surface	φ450mm	φ600mm
		Max. machining diameter	φ360mm	φ360mm
		Machining diameter on the slide	φ300mm	φ300mm
		Max. machining length	520mm	500mm
Spindle and chuck parameters		Spindle head form	A2-6(8")	A2-6(8")
		Spindle motor power	11/15KW	11/15KW
		Max. spindle speed	3500rpm	3500rpm
		Spindle bore diameter	φ61mm	φ61mm
		Bar through-hole diameter	φ52mm	φ52mm
Feed part parameters		X/Z axis screw spec.	3210/4010	3210/4010
		X-axis limit stroke	180mm	180mm
		X and Z axis motor torque	15N.M	15N.M
		Z-axis limit stroke	560mm	560mm
		X and Z axis connection method	Direct connect	Direct connect
Accuracy		Machining accuracy	IT6	IT6
		Repeatpositioning accuracy	0.003mm	0.003mm
Servo turret		Servo turret	NC145-V10-330	BMT45/12T/ER20/4000rpm
		Turret center height dimensions	145	145
		Tool size	25 × 25	25 × 25
		Boring tool holder dimensions	40mm	40mm
Tailstock part		Sleeve diameter	80mm	80mm
		Sleeve stroke	80mm	80mm
		Max. tailstock stroke	400mm	400mm
		Tapered bore of tailstock sleeve	Mohs 4#	Mohs 4#
Shape		Bed form and slope (LxW×H)	Integral 45°2700/1800/1900	Integral 45°2700/1800/2100
Weight		Weight (approx. weight)T	4.5T	4.8T
Systems available: FANUC, MITSUBISHI, SIEMENS, GSK
