Product Details
Product Description
Product Description
Product Description
Safety warning：
Only Stainless steel sieve can withstand 50 Newtons tension
Screen printing mesh can withstand up to 28 Newtons
Why choose TAMPRINTER not SEFAR?
SEFAR – Stretching clamps for Industrial metal sieve, pays more attention to the uniformity of tension,
cons: There was a gap between each SEFAR clip, so the twisting of the mesh is inevitable.
TAMPRINTER full automatic Stretching pliers for the printing industry pays more attention to the clarity of the silk line grid , each silk line is not twisted or bend from start to end.
cons:It is inconvenient to adjust the local area of tension.
According to the customer's feedback, there are two kinds of equipment in the same factory. Customers prefer TAMPRINTER full automatic, which can record multiple sets of data, and intelligence is the future trend.

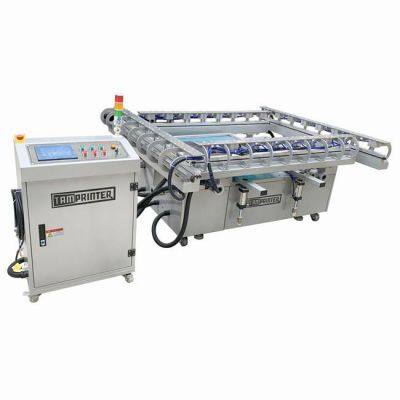

Fully automatic powerful gas-electricity hybrid mesh Stretching Machine
Customer Success Story Video
https://youtu.be/vi8ot5yNmp0
/p/CMi5yumAZ2f/?igshid=1df8rlnwgaxqi
Stretching composite steel mesh machine detail video
/p/CMWxrmrg5eF/?igshid=1k1544kf5hois
Machine local joint activity video
/p/CL_eEFNFzNH/?igshid=116zvqfpin4mx
Currently the most precise stretcher for PCBs using Thick Film screen printing technology
Full version video of customer's normal workflow /p/CL8MKe7lDqT/?igshid=6wixboi3ai9m
Netting machine and big oven shipping video:
/p/CNJ9CATAIdM/?utm_source=ig_web_copy_link
| machine outside size | 3600mm*8800mm*1150mm | 200*250*115CM , 5.75CBM | 240*200*115CM , 5.5CBM |
| Max Size Area for Frame | 3200*8000mm | 1200*2100mm | 1600*1600mm |
| Min Size Area for Frame | 2700*8000mm | 800*2100mm | 1000*1600mm |
| Tension tolerance | Max 0.5N | Max 0.5N | Max 0.5N |
| maximum tension | more than 50N | more than 50N | more than 50N |
Motor transmission
mode
| Worm gear deceleration
SUBI 1:50
| Worm gear deceleration
SUBI 1:50
|
Power
| 3KW
380V-3phase 50Hz
| 3KW 380V-3phase 50Hz
|
Weight
| 1500kg
| 1500kg
|
Structural part
| project
|
Accessories name
|
Configuration instructions
|
basic structure
| Fuselage structure
| Square tube shape
| Sheet metal bending and bending box type removable type
|
Surface box
| Square tube
| Welding surface processing removable
|
Transmission mechanism
| Screw system
| Sino-foreign joint venture
| 380V
LP-1.5KW
|
Gearbox
| Sino-foreign joint venture
| DRV900 1:50*2P
|
cooling system
| Exhaust fan
| AC-220V*2P
|
Pneumatic configuration
| Lock cylinder
| NSN63C-25
| SDA-25*16
|
electromagnetic valve
| QDC-Q4D2L08
| 220V- Q4D2L08
|
Pressurized cylinder
| NSN63C-25
| SDA-25*60
|
Electrical configuration
| system
| Programming
| XINJE-XC3
AC-220V 48E
|
Display panel
| touch screen
| TH765-MT7MS
|
Inverter
| Shilin
| SS2-021-2.2k
|
Limit switch
| sensory switch
LKD-18
| PRCM12-4DN
D4MC-5020
|
Contactor
| 2510N
| LC1E2510M5N AC220V
|
Payment Terms︰ TT/LC
>>
