Suspension Roller Concrete Pipe Making Machine for Pipe Dia From 300mm to 2000mm

Product Description

Product Description

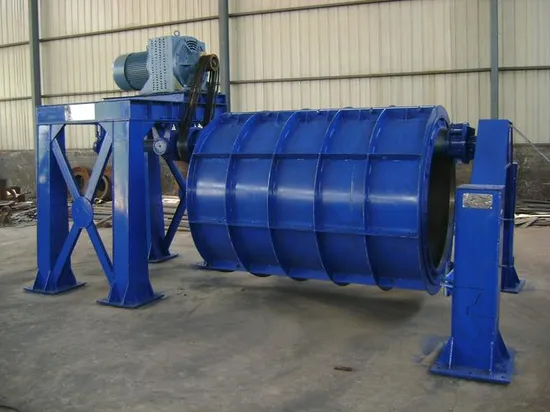

Introdction of Suspension Roller Concrete Pipe Making Machine
Suspension roller concrete pipe machine can produce pipe diameter from 300mm to 2000mm , length from 1m to 4m , with different pipe joint shape ; the concrete pipe machine is low invested and high efficency , it is steady and with small production space.

Features of Suspension Roller Concrete Pipe Making MachineSuspension roller concrete pipe making machine adopts dry hard concrete, the pipe wall is dense, and the pipe body can withstand high load strength; the pipe feeding time is short, the forming time is short, and the production efficiency is high; the waste of concrete in the pipe making process is small, There is no discharge of waste cement slurry, so there is no environment; the intensity of high-frequency noise generated during the production process is low; the pipe making operation technology is difficult, and poor control may easily lead to poor impermeability, rough pipe body, and excessive pipe wall Quality problems such as thickness and pipe wall collapse.


Product Parameters

Technical Parameters

Model	Length (mm)	Shaft Dia (mm)	Motor Power (KW)	Dimension(mm)
300-600	1000	120	7.5	2500*1500*1300
	2000	120	15	3500*1500*1300
	3000	120	22	4500*1500*1300
800-1200	2000	180	45	4500*2200*1800
	2500	240	45	5000*2200*1800
	3000	240	55	5500*2200*1800
	4000	300	75	6500*2200*1800
800-1500	2000	350	75	4500*2500*1800
	2500	350	75	5000*2500*2080
1200-2000	2000	500	90	5000*2800*2080
