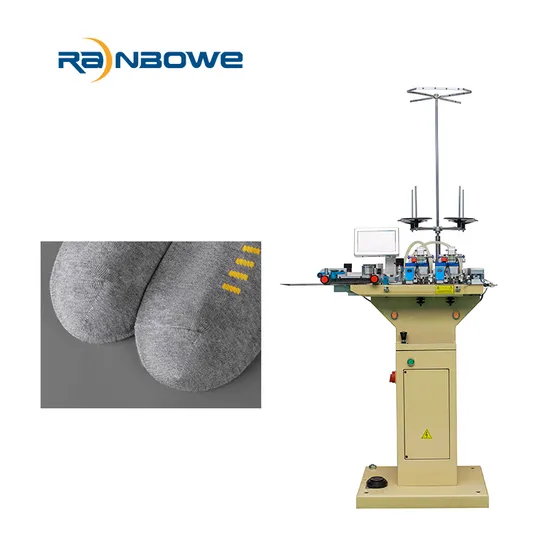

Full Computer Sock Toe Closing Machine with Spare Parts

Product Description

Product Description 686 Sock Toe Closing Machine

Motor	6 motors; 4 brushless motor, 2 stepper motor
Production Capacity	800 pairs/hour
Voltage	220V
Freqency	50HZ
Power	630W (Fan: 370W, Main process equipment: 260W)
Gross Weight	120KGS
Net Weight	72KGS
Package Size	1*0.48*1.3M

The sewing effect of this type of sock linking machine is the best 1. Automatically lubricating nose device makes a longer performance life and a better working environment with low-noise.
2. Adopting automatically cutting device, the sutures will be cutting unified length.
3. Turnover yarn feeding device makes the yarn cleaning conveniently. Built-in automatic hoisting device is for conveying purpose, assure the socks' planeness.
4. An optical fiber inductive time lapse function as yarn feeding makes it possible to set delay time according to the running speed, which reduces the waste of sutures substantially when sewing.
5. Adopting dual channel nose device, makes the sock sewed with fine flat seams, even similar as handsewer.
6. Point-contact touch screen computer control system makes it easy to handle.
7. Independent motor system allow us adjust arbitrary aewing density and speed in computer, which keeps the sewing socks away from stretching or shrinkage.
8. There is an automatic hoisting device inside the second nose, which can be adjusted by computer. That comes to an easier and more accurately handling, and prevents the sutures from showing up.


Spare Parts All knids of sock linking machine spare parts are available !
Sock Production Line
The finished socks from sock knitting machine is not completed, so sock toe linking machine is used to make toe closed.There are several types can be offered: one linking motor 181, two linking motor 282, three linking motor 383, five linking motor 585, six linking motor 686. The more linking motor, the better linking effect.One/ Two/ Three linking motor will be more popular to be purchased.(Sock Tagging Machine, Yarn Winding Machine, Grinding Machine depends on your own needs)
