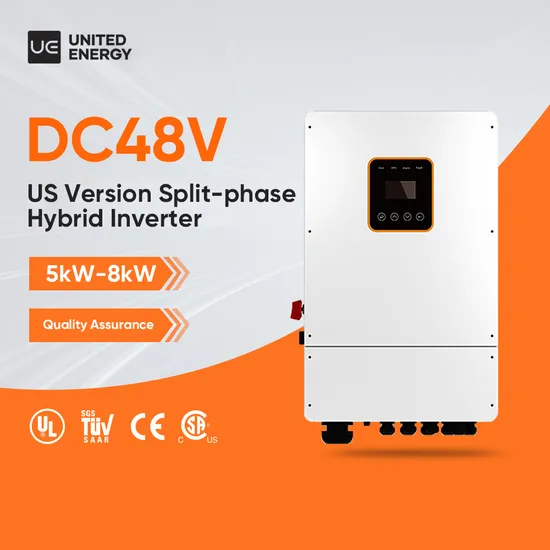

| Model | R5KLNA | R6KLNA | R7KLNA | R8KLNA |
| ON GRID AC OUTPUT | ||||
| Rate AC Output Power | 5KVA | 6KVA | 7KVA | 8KVA |
| AC Output Voltage | 120/240Vac (split phase), 208Vac (2/3 phase), 230Vac (single phase) | |||
| AC Output Frenquecny | 50/60Hz | |||
| Grid Type | Split phase, 2/3 phase, Single Phase | |||
| Max Output Current | 24A | 28.8A | 36.5A | 38.3A |
| AC reverse charging | Yes | |||
| PF | 0.8leading…0.8lagging | |||
| BACK-UP AC OUTPUT | ||||
| Rated Backup output power | 5KVA | 6KVA | 7.6KVA | 8KVA |
| Max Backup output power | 6.25kVA 60S. 7.5KVA 1S | 7.5kVA 60S. 9KVA 1S | 9.5kVA 60S. 11.4KVA 1S | 10kVA 60S. 12KVA 1S |
| Backup AC output Voltage | 120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase) | |||
| AC Frenquency | 50/60Hz | |||
| PV INPUT | ||||
| PV input power | 7.5kW | 9kW | 12kW | 12kW |
| MPPT number | 4 | |||
| PV voltage range | 350V/85V-500V | |||
| MPPT voltage range | 120V-500V | |||
| Single MPPT input current | 12A | 12A | 12A | 12A |
| BATTERY | ||||
| Max charging /discharging current | 120A / 120A | 135A / 135A | 190A / 190A | 190A / 190A |
| Battery Voltage range | 48V | |||
| Battery Type | Lithium-ion,Lead-acid | |||
| PROTECTION | ||||
| Ground protection | Yes | |||
| AFCI protection | Yes | |||
| Islanding protection | Yes | |||
| DC disconnect detection | Yes | |||
| Battery Reverse protection | Yes | |||
| Battery charge and discharge protection | Yes | |||
| Insulation testing | Yes | |||
| Input overvoltage & under-voltage protections | Yes | |||
| Output overvoltage & under-voltage protections | Yes | |||
| AC & DC over-current protection | Yes | |||
| AC short-circuit current protection | Yes | |||
| Overheating protection | Yes | |||
| GENERAL DATA | ||||
| Operation Temperature range | -25 ~ +60°C | |||
| Environment humidity | 0-95% | |||
| IP rank | IP65/NEMA 3R | |||
| Weight | 32kg | |||
| Dimension (W × H × D) | 430 × 710 × 210mm | |||
| Cooling | Fan Cooling | |||
| Noise (dB) | <25dB | <29dB | <29dB | |
| Display | LCD | |||
| Communication / Safty / EMC / On Grid | Modbus, RS485, WIFI, 4G / EN61000-6-1, EN61000-6-3, FCC 15 class B EC62109-1, IEC62109-2 / UL1741 ,IEEE1547, RULE21, VDE 0126, AS4777, NRS2017, G98, G99 | |||
