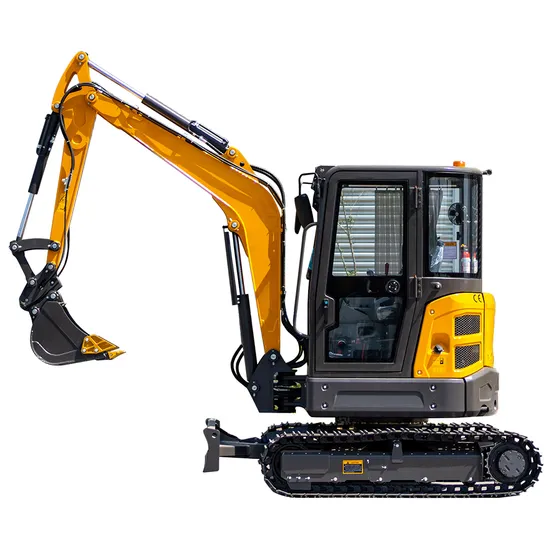

Free Shipping Multifunction 3.5 Ton Micro Small Excavator Machine Price Mini Diggers Hydraulic RC Excavators

Product Description

Product Description

ENGINE
Emission Standard	Euro 5,EPA4
Make /Model	D1703
Power /Rotation speed	18.2kw(25HP)@2200rpm
Number of cylinder	3
Type	In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
Max.torque	97.4N.m/1500rpm
Displacement	1.642L
TRACK DRIVING SYSTEM
Maximum Travel speed(High/low)	4.4/2.4km/h
Width of steel track shoe	300mm
Carrier roller(Each side)	1
Supporting roller(Each side)	4
PERFORMANCE PARAMETER
Standard Bucket capacity	0.12m³
Swing speed	12rpm
Maximum Grade ability	58%(30°)
Ground pressure	32Kpa
Maximum Bucket digging force	30.4KN
Maximum Arm digging force	18.2KN
Hydraulic system pressure	22.5Mpa
Machine weight	3810kg
Boom length	2535mm
Arm length	1400mm
Fuel tank capacity	40L
Hydraulic oil tank capacity	44L
Engine oil capacity	7L
Radiator capacity	3.8L
Final drive	2*0.7L
MACHINE SIZE
Overall dimension (L*W*H)	4915mm*1720mm*2525mm
Axle base(Track length on ground)	1670mm
Length of rubber track	2154mm
Track gauge	1420mm
Minimum Ground clearance	295mm
Swing radius at tail	860mm
Swing radius at front	2538mm
Height of blade	350mm
WORKING RANGE
Maximum Digging height	4800mm
Maximum Dumping height	3406mm
Maximum Digging depth	3208mm
Maximum Vertical digging depth	2957mm
Maximum Digging distance(working radius)	5480mm
Maximum digging distance (on ground)	5359mm
Minimum swing radius	2530mm
Max.height when min.swing radius	3655mm
Maximum Lifting height of blade	365mm
Maximum Cutting depth of blade	385mm
Boom swing angle(Left/Right)	55°/65°

Packaging & Shipping
For transportation, we have many ways: Sea, air,land carriage,express delivery, and support multiple payment. You can receive this machine you need at the port, and of course you can also receive the machine at your house. (Depending on the machine, we will suggest you a more suitable way), we guarantee that we will not charge any intermediate fees and extra fees that exceed the shipping cost, we just want you to get this favorite machine faster and more preferentially!

FAQ
Q:Whether are you a factory?A:Yeah, We are factory, Located in Jining,shandong,ProvinceQ:As First time shopping online from China, how about the operation?A:No worry, we have over 20years export experiences to all over the world, we have the professional support, we would introduce all clear for you happy shopping. Order-production-shipment-deliveryQ:What's the quantity loading for container 20ft,40hqA:Standard model HT10B 7units in 20ft, 15units in 40HQ;Special requirement,there ajustment; One unite with plywood case packed;Q:How about the after services?A:our products one year warranty,We have professional Technical and after-services Team, when we receive the clients issuefeedbacks,we would deal the issue and offer the professional feedbacks at first time and to check the issue reason and offer theright support or Free spare parts;Q:How to begin the shopping?A:Please send your enquiry or message here, then we will make the final offer and invoice for you final checking then finish theshoppingQ:How about the payment term? How to pay?A:We support 100% In advance; or deposit in advance,balance before the shipment;We accept TT(Wire transfer), online transfer, Credit card, VISA, Paypal, apple pay,.. L/C At sight....
