Hot Sale Model 37m 6*4 Truck-Mounted Concrete Pump Hb37V with Euro V Emission

Product Description

Product Description

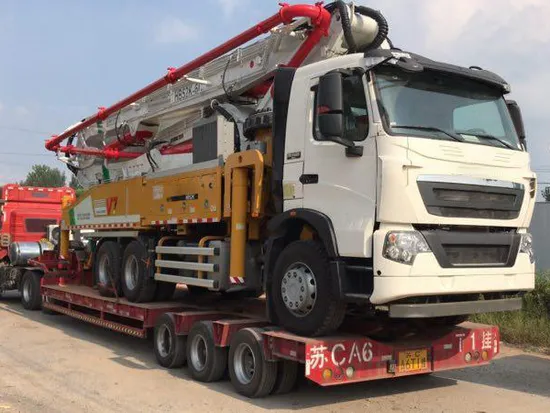

HB37V Concrete Pump Truck Mounted 37m Concrete Pump Machine for Schwing Technology 37m 4x2 6x4

V7 series truck mounted concrete pump is equipped with ultimately safe boom, lower structure of high rigidity, efficient pumping system of rock valve, hydraulic system of outstanding performance, intelligent control system and easy-wear parts with super-long service life.
1. The adoption of new multi-section boom design optimized by bionic technology effectively reduces placing blind zone and better adapts to placing in high-rise and narrow space.
2. On the basis of the design concept of high rigidity structure, simulative calculation and testing of full-work-condition
loading make chassis structure deformation smaller and overall work stability higher.
3. Based on laser guide, coaxial assembly makes piston head's moving track more precise, with smaller resistance and higher efficiency.
4. SCHWING Germany's hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero-pollution.
Product Parameters

Category	Item	Unit	HB37V
Overall	Outline dimension	mm	9900×2525×3750
	Overall weight	kg	23000
Chassis	Brand	/	Sinotruck
	Model	/	ZZ5231N521GE1
	Wheelbase	mm	5200
	Max.power	kW	225
	Emission standard	/	China V
Pumping system	Theoretical	m³/h	120/80
	Concrete pumping pressure	MPa	8.7/13
Placing boom	Reach height	m	36.5
	Reach depth	m	24.9
	Slewing radius	m	32.5
Others	Transfer	/	S valve
