Product Details
Product Description
Product Description
Overview Quick DetailsPlace of Origin:Liaoning, China
Brand Name:GCAN
Model Number:USBCAN-II C
Housing material:Silver grey aluminum alloy casing
Operating system:Windows XP, 7, 8, 10, etc
Support secondary development:Yes
Interface form:Open 4 Terminal interface
Baud rate:5kbps-1Mbps
Electric isolation, insulation level:DC3000V
Transfer speed:Send up to 8000 frames / s Receive up to 8000 frames/second
Working temperature:-40~ 85℃
OEM:Support
Packaging & DeliverySelling Units:Single item
Single package size: 21X16X6 cm
Single gross weight:0.500 kg
Package Type:Export carton

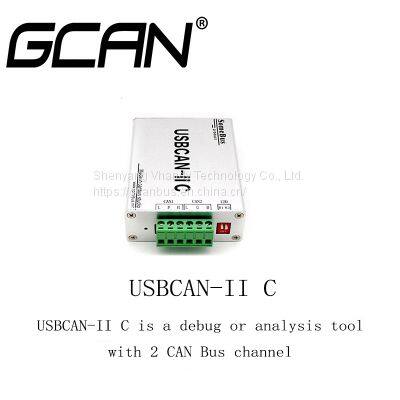

IntroductionUSBCAN-II C is an industrial CAN-bus communication interface card integrated with two CAN interfaces. This type of can card can be compatible with the full speed specification of USB2.0 bus. Using USBCAN-II C interface card, PC can be quickly connected to CAN-bus network through USB interface to form a CAN-bus network control node for data processing and data acquisition in the field of CAN-bus network,such as fieldbus laboratory, industrial control, intelligent community, automotive electronic network and so on.
Product features
The PC interface conforms to the USB2.0 full speed specification and is compatible with USB1.1
|
Integrated 2-way CAN-bus interface, Phoenix terminal connection mode;
|
supports CAN2.0A and CAN2.0B frame formats and conforms to the ISO/DIS 11898 specification;
|
The baud rate of CAN-bus communication is arbitrarily programmable from 5Kbps to 1Mbps
|
Use USB bus power supply, or add external power supply (DC5-24V, 130mA)
|
when the power supply is insufficient;
|
CAN-bus interface adopts electrical isolation, isolation module insulation voltage: DC 1500V;
|
Maximum received data flow: 8000 fps;
|
Support Win2000, WinXP, Win7, Win8, Win10 and other Windows operating systems;
|
Support ECANTools, CAN Test, CAN Pro test software;
|
Working temperature range: -20℃~+70℃;
|
Typical application■ CAN-bus network diagnosis and test
■ Automotive electronics applications
■ Electric power communication network
■ Industrial control equipment
■ High-speed, large data communication
After-sale serviceOur main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
>>
