Ysenmed Medical Equipment Ysx500d 50kw 630mA Digital Radiography System Digital X Ray Machine

US$15,799.00-19,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
YSX500D
Material
Metal
Certification
ISO13485
Power Type
Electric
Group
Adult
Output Power
50kw
Power Voltage
220V±22V
Kv Range
40~125kv
Ma Range
10~630mA
Mas Range
0.4 ~1000mas
Exposure Time
0.001~10s Adjustable: Stepping by 1ms
Transport Package
Plywood Case
Trademark
Ysenmed
Origin
China
Production Capacity
1000 PCS/Year

Product Description

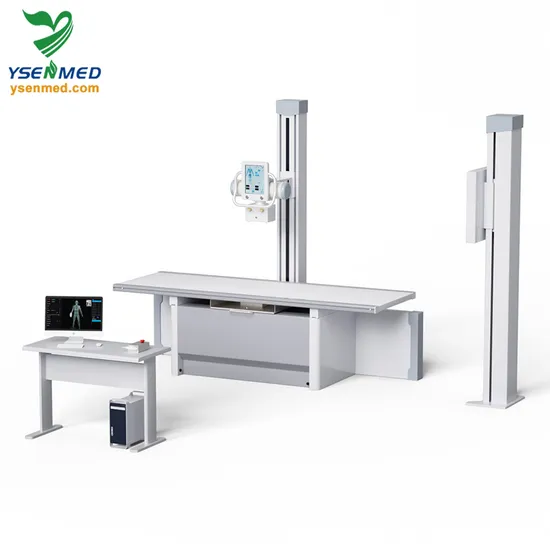

YSENMED Medical Equipment YSX500D 50kW 630mA Medical Digital Radiography System
Models
Parameters 		YSX200D YSX320D YSX500D YSX650D
Max. kW 20kW 32kW 50kW 65kW
Power 50Hz/60Hz, wire diameter>4mm2, internal resistance<0.5Ω, 20/32/50kW can work with either 220V or 380V, 65kW only works with 380V.
mA 10~250 10~400 10~630 10~800
mAS 0.1~200 0.1~320 0.4~1000 0.4~1000
KV 40~125kV, stepping by 1kV 40~150kV stepping by 1kV
Exposure Time 0.001~10s adjustable: stepping by 1ms
Focus Dual focus: 1.0*1.0mm/2.0*2.0mm Dual focus: 0.6*0.6mm/1.2*1.2mm
Rotating Speed & Heat Capacity 2800prm/1300kHU 2800prm/1300kHU
Inverter Frequency 50kHZ~220kHZ
Tube Movement Up & down lift, left & right rotation
Column Left & right movable
Radiography Table Four-way floating

Flat Panel Detector
Flat Panel Detector Amorphous silicon cesium iodide
Detector Size 17*17 inch
Pixel Resolution 3072*3072
Pixel Pitch 139um
Imaging Time <8s
A/D Conversion 16bits
Spatial Resolution 3.6lp/mm
Size 460*460*15mm
Interface Wired (Wireless is optional)
Software Professional medical software with multi-languages available
Workstation Intel i5 CPU, 8G memory,2G card,128G SSD,PCI-E, R232;22.5 inch display. Other options are available upon request.
