Hydraulic and Electric Tugger Winches for Boat

Product Description

Hydraulic and Electric Tugger Winches for Boat

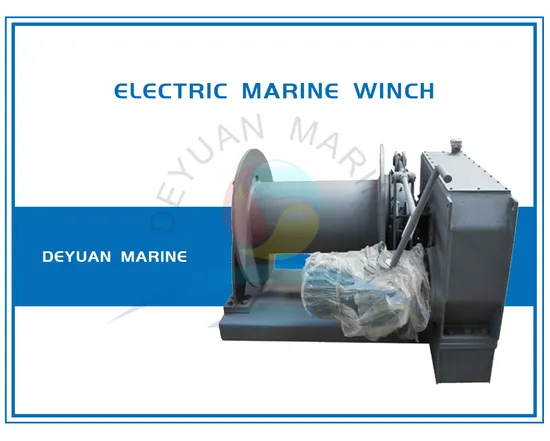

Electric Marine Mooring Winch:
A mooring winch is one of the marine equipment used during mooring operations to hold a boat in place at a pier or similar fixture. Electric marine mooring winch can operate effectively when dock ship or docking port, and it has many functions. In the process of loading and unloading, electric driven marine winch plays the role of drift, support and positioning, and adjusts the deviation of compensation vibration with constant tension.
The marine mooring winch can be driven by electric and hydraulic. As you can see our below electric driven type marine mooring winch. The rated pull is from 5KN to 650KN. Deyuan marine can design the electronic ship mooring winchaccording to your specific requirement.
All our electric boat marine winches are approved by CCS,ABS,DNV,BV,NK,RINA,BKI. Deyuan marine can offer you the marine winch with hight quality and best price. Pls feel free to contact deyuan marine sales team for more details. Hydraulic Marine Towing Winch:
Towing winch is another type of winches, mainly use for drag mission, it is very popular use on tug boat, anchoring supply ships, working vessel etc, with huge drag capacity, usually in a range of 45-500Ton.
Tugger winch usually use with a crane when lifting heavy goods, this tugger winch here act as a part of crane machine to make lifting goods steady, capacity is also small for tugger winch, normally less than 10Ton.
Mooring winch is an important winch nearly use on all kinds of boat, it is just like anchor windlass, when ship's berth at port, emergency berting or when tug boat have drag mission mooring winch will be use. From above information you can see the mooring winch is using between ships and platform when ship berthing.

Tugger Winches/Capstans
Model	HTW-10~300	ETW-10~300	HC-5~200	EC-5~200
Drive	Hydraulic or electric		Hydraulic or electric
Type	Single or double drum		vertical
Rated load	10KN~300KN		5KN~200KN
Rated speed	10~30m/min		10~20m/min
Holding load	20KN~500KN
Dia.wire	φ13~42mm		φ13~32mm
Drum capacity	50~500m
Clutch	Hydraulic/handle operated jaw type
Brake	Spring loaded hydraulic release/handle operated type
Power required	4~90kw		4~75kw
Control	Local control& remote control in wheelhouse
Option	Length &tension monitoring system

---
