US$7,000.00-14,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Special Weight Level
Feature
Explosion-Proof, Insulating
Platform Dimensions
1.53*0.76
Vertical Jib Rotation
140
Transport Package
Nude Packing
Production Capacity
3000 PCS/Year
Packaging & Delivery
Package Size
624.00cm * 175.00cm * 200.00cm
Package Gross Weight
6270.000kg
Product Description
| Model | GTZZ10D | GTZZ12D | GTZZ14D | GTZZ16D | GTZZ18D | GTZZ20D |
| Max. Working Height(m) | 12 | 14 | 16.05 | 17.8 | 20 | 21.9 |
| Max. Platform Height(m) | 10 | 12 | 14.05 | 15.8 | 18 | 19.9 |
| Max. Horizontal Reach(m) | 5.8 | 8 | 8.1 | 10 | 10.8 | 12.3 |
| Max. Up&Over Clearance(m) | 4.78 | 5 | 7.6 | 7.6 | 9.2 | 9.2 |
| Platform Dimension(L×W)(m) | 1.1×0.65 | 1.1×0.65 | 1.53×0.76 | 1.53×0.76 | 1.53×0.76 | 1.53×0.76 |
| Length(stowed)(m) | 4.35 | 5.3 | 6.24 | 7.9 | 8.1 | 9.2 |
| Width(stowed)(m) | 1.5 | 2 | 1.75 | 2 | 2..38 | 2.38 |
| Height(stowed)(m) | 1.99 | 2.05 | 2 | 2 | 2.38 | 2.34 |
| Wheelbase(m) | 1.65 | 2 | 2 | 2.2 | 2.6 | 2.6 |
| Ground Clearance(m) | 0.15 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 |
| Max. Lift Capacity(kg) | 200 | 200 | 230 | 230 | 230 | 230 |
| Max. Platform Occupancy | 2 | 2 | 2 | 2 | 2 | 2 |
| Platform Rotation | ±80° | ±80° | ±80° | ±80° | ±80° | ±80° |
| Vertical JIB Rotation | 140° | 140° | 140° | 140° | 140° | 140° |
| Turntable Rotation | 355° | 355° | 355° | 355° | 355° | 355° |
| Turntable Tailswing(m) | 0.25 | 0.13 | 0 | 0 | 0.33 | 0.33 |
| Driving Speed(stowed)(km/h) | 3 | 3 | 5 | 5 | 5 | 5 |
| Driving Speed(raised)(km/h) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Gradeability | 25% | 25% | 30% | 30% | 25% | 25% |
| Max. Working Slope | 3°/ 3° | 3°/ 3° | 3°/ 3° | 3°/ 3° | 3°/ 3° | 3°/ 3° |
| Turning Radius(inside)(m) | 2.16 | 2.2 | 2.68 | 2.98 | 2.66 | 2.66 |
| Turning Radius(outside)(m) | 3.44 | 4.73 | 4.24 | 4.62 | 5.66 | 5.66 |
| Drive&Steer Mode | 4×2×2 | 4×2×2 | 4×2×2 | 4×2×2 | 4×2×2 | 4×2×2 |
| Tire Type | 0.59*×1.19 | 0.59×1.19 | 28×9×15 | 28×9×15 | 33×12×20 | 33×12×20 |
| Battery | 48V/320Ah | 48V/320Ah | 48V/420Ah | 48V/420Ah | 48V/420Ah | 48V/420Ah |
| Pump Electric Motor Power(kW) | 7.5 | 7.5 | 5 | 5 | 5 | 5 |
| Drive Electric Motor Power(kW) | \ | 6.5×2 | 6.5×2 | 6.5×2 | 6.5×2 | 6.5×2 |
| Control Voltage | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC | 24V DC |
| Charger | 48V/40A | 48V/40A | 48V/40A | 48V/40A | 48V/40A | 48V/40A |
| Weight(kg) | 4800 | 5500 | 6270 | 6270 | 8080 | 8200 |

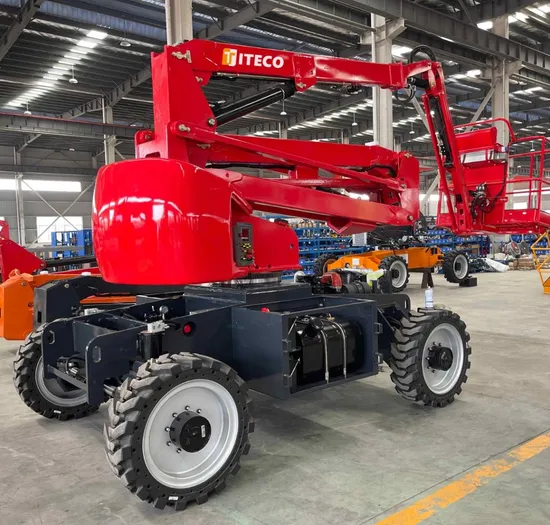

INTRODUCTION
We provide all Boom Lifts include both diesel and electric driven models, with the primary feature being the highly flexible and convenient. Their articulation and rotation in particular allows this type of work platform to out-maneuver various obstacles and work at several points without the need to reposition the base.
With a wide operating range, high efficiency and large load capacity, numerous technical innovations have been incorporated into the design so that the product boasts high-level safety, reliability and operability. Both telescopic and articulated articulating Boom Lifts are widely used for plant installation and maintenance, venue construction and maintenance, construction engineering, large-scale warehousing, aviation and aerospace industry applications, airports and harbors, urban utilities and gardening, curtain wall engineering and more.
FEATURES JIB with a 90 °- 360 ° rotatable platform. The ability to drive and operate at full height Stabilization technology helps good performance Fast elevating boom at full height Unparalleled platform stabilization Smart control system make the lower energy consumption. Compact structure dimension for narrow space work. Straight boom provides greatest horizontal reach Best-in-class grade ability and reach Fastest lift and drive speeds for unmatched productivity PRODUCT DETAILS
Engine Part
4WD System & Electric Power
SHIPPING&DELIVERY
>>
