Multi Purpose Lathe Machine Combination Lathe Machine JYP280V

Product Description

Product Description

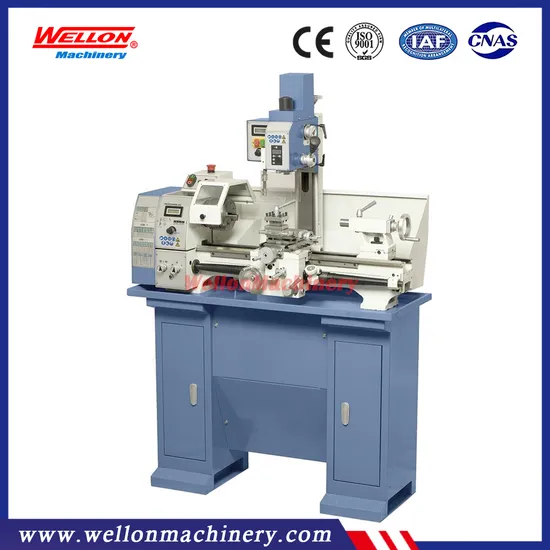

Multi Purpose Lathe Combination Turning Drilling Machine JYP280V
Detailed Photos


Product Parameters

Features:
Most popular, widely useful combination machine.
V-way bed is hardened and precision ground.
Adjustable height head gets greater capacity.
MT4 spindle hole gets greater capacity
Spindle is supported by high precision bearing.
T-slotted cross slide.
Power longitudinal feed allows threading.
Adjustable gids for slideways
Right and left hand threads cutting is available.
Spindle feeding handle with softgrip for perfect operation.
Tailstock can be off set for turning tapers.
Geared mill head gets more toqure.
Mill head can be tilted +/-90 degree
Tolerance test certificate, test flow chart included
Technical parameter:

Item	unit	JYP280V
Distance between centers	mm	700
Swing over bed	mm	280
Swing over cross slide	mm	165
Width of bed	mm	180
Taper of spindle bore		MT4
Spindle bore	mm	26
Number of spindle speeds		variable
Range of spindle speeds	rpm	50-2000
Range of longitudinal feeds	mm/r	0.07-0.20
Range of inch threads	tpi	8-56T.P.I
Range of metric threads	mm	0.4-3.5mm
Top slide travel	mm	50mm
Cross slide travel	mm	140
Tail-stock quill travel	mm	70
Taper of tail-stock quill	mm	MT2
Motor	kw	1.1
Mill/Drill
Taper of spindle bore	mm	MT2
Spindle stroke	mm	50
Spindle speed	rpm	50-2250
Max distance spindle to table	mm	375
Max distance spindle to columm	mm	185
Motor	kw	0.6
Packing size	mm	1400×780×1070
Net weight	kg	230/250

Standard accessories:
Change gears
Oil tray
Splash guard
3-jaw chuck
Dead centers
Oil gun
Some tools
Optional accessories:
Steady rest
Follow rest
Face plate
Turning tools-
Quick change tool post
4-jaw chuck
Live center
Drill chuck
Stand base
Collet chuck kits
2 axis DRO
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
