US$115,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
External Grinding Machine
Processing Object
Cylinricity
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, ISO 9001
Transport Package
Wooden Box
Production Capacity
100 Sets/ Year
Product Description

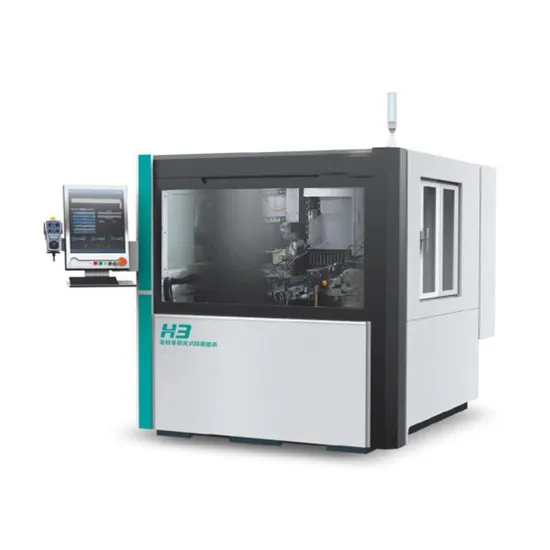

High Precision CNC Swiss CNC Grinding Machine for Grinding Carbide Rods
Micrometer Processing Accuracy
CNC Automatic Processing
For hard raw materials to Precision mid-finished rods.
This Swiss CNC grinding machine is designed as professional manufacturer who is top manufacturer of this swiss griinding machine in China. This Swiss grinding machines are sold to many enterprise. The Swiss grinding machine is designed for the processing of precision machine tools, to achieve very precision accuracy rods. Also this grinding machine can get many different shapes rods .
The control system is smart to process, and have a online tracking in touch screen. The machine keep high precision to micrometer.
1. Available material: hard raw material, like high-speed steel, carbide rod.... Workpiece grinding method: Swiss type grinding, the angle of the rough grinding wheel is 11°, the fine grinding wheel is 90°.
3. Processing : The robot arm automatically feeds and receives the material, and the feed is completed at one time.
4. Grinding time: for Φ4 raw material to finished forming, the grinding time is about 65 seconds per piece, and the speed ,and the speed can be adjusted according to the actual situation.
5. The available grinding diameters : 0.05 - 20.0mm.
6. Length of grinding workpiece: up to 200mm.
7. Rotation way of working head spindle: fixed
8. Working head spindle speed: 0 -- 2000rpm
| NO | Items | Des |
| | H3 grinding machine | |
| 1 | Clamping workpiece dia range | 0.5-20mm |
| 2 | Cutting workpiece dia range | 0.05-20mm |
| 3 | Clamping/Cutting workpiece length | 300/200mm |
| 4 | Control system | ANCA---X/Y/Z/Z' |
| 5 | Workpiece feeder system(CNC-3 axis) | ANCA---U/V/W |
| 6 | Rough grinding | Grinding wheel size(OD *W * ID) | 250×20×31.75 |
| 7 | Grinding wheel speed (electric spindle) | 0~9000 rpm |
| 8 | Grinding wheel line speed | 90 m/s |
| 9 | Grinding wheel spindle motor | 20 KW |
| 10 | Fine grinding | Grinding wheel size(OD *W * ID) | 150×20×31.75 |
| 11 | | Grinding wheel speed (electric spindle) | 0~12000 rpm |
| 12 | | Grinding wheel line speed | 90 m/s |
| 13 | | Grinding wheel spindle motor | 5 KW |
| 14 | X/Y/Z/Z' axis feeding unit | 0.001mm |
| 15 | X axis moving length (rough grinding wheel axis) | 73mm |
| 16 | Y axis moving length (fine grinding wheel axis) | 40mm |
| 17 | Z axis moving ( working head) | 374mm |
| 18 | Z' axis moving ( the guide of Z axis ) | 52mm |
| 19 | X/Y/Z/Z' axis servo motors | 2.0 KW |
| 20 | Working head table motor | 1.0 KW |
| 21 | Working head spindle speed | 0-3000 rpm |
| 22 | High pressure oil pump | 0.25 KW |
| 23 | Working head spindle rotate way | fixed |
| 24 | Length position way | Front positioning |
| 25 | Robot arm U/V/W axis servo motor | 1.0KW |
| 26 | Cutting liquid tank | 300*300*1000mm |
| 27 | Gross weight | 5000 KG |
| 28 | Dimension | 2390*2752*2050mm |
>>
