Basic Info.
Structure

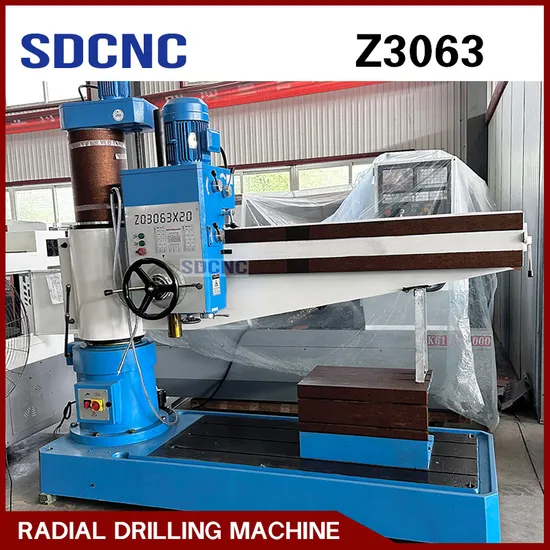

Radial Drilling Machine
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Product Name
Radial Drilling Machine
Keyword
Z3063 Radial Drilling Machine
Function
Drilling Milling Machining
Transport Package
Wood Packaging
Specification
3200*1200*3430
Packaging & Delivery
Package Size
320.00cm * 120.00cm * 343.00cm
Package Gross Weight
7000.000kg
Product Description
Product Description
Product Parameters
| Specifications | Z3063*20A |
| Max. drilling diameter | Φ63 |
| Distance from spindle nose to table surface | 220-1300 |
| Distance between spindle axis and column surface | 430-1900 |
| Spindle travel | 400 |
| Spindle taper | Morse No. 5 |
| Spindle speeds range | 16-1600(16 steps) |
| Spindle feeding range | 0.04-3.2(16 steps) |
| Rocker rotary angle | +/-90° |
| Main motor power | 5.5 |
| Movements motor power | 1.5 |
| N/W | 6500 |
| Overall dimension (L*W*H)) | 3080×1250×3205 |
Company Profile
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling machine, vertical drill Bed and other machine tools.
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
>>
