Good Quality Double Arms Furan Resin Sand Mixer Machine, Continuous Sand Mixer for Silicate

Product Description

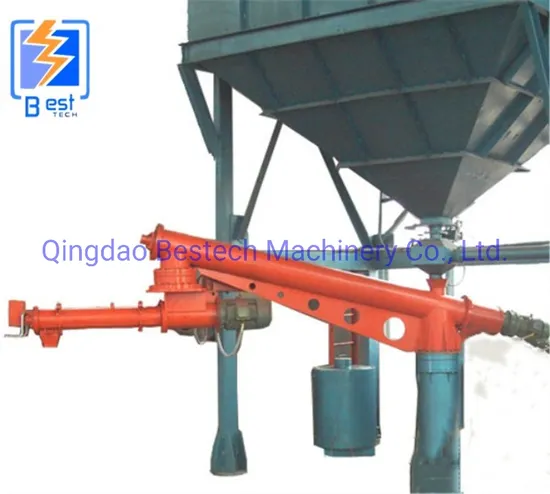

S25 series double arm sand mixer
1 ) Continuous arms resin ( sand ) sand mixer is single single mixed models, the conveyor from the primary and secondary sand stir stir cage cage components. Low-speed conveyor transport cage stir , stir sand mixed with high-speed cage .
2 ) mixing sand with full open cage type , carbide blades welded on sand , more than 2,000 hours in its life .
3 ) conveying fluid using imported Italian mechanical diaphragm metering pumps curing agent ( hardener pump ) , and a gear pump ( with variable speed motor ) conveying the resin can also be based on user demand for a full selection of imported gear pump delivery .
4 ) mixed sand sand is very small head and tail , electrical control system adopts imported PLC control to ensure 100% machine utilization rate .
5 ) conveying fluid valve ( commonly known as: proximal control valve ) can be used decay liquid feed valve ( backflow valve ) , the valve can be shut down non-stop pumps, mixer valve in operating position to work does not work when you hit the reflux position again when the call to the working position working to solve the pump head and tail when frequent problem of excessive sand .
Liquid material by spraying compressed air into a fan to help with mist , making it easier binder mixed with sand quickly and evenly , can also be used with cleaning fluid valve purge function .

Type Parameters		S255	S2510	S2515	S2520	S2525	S2530
Rate of production (t/h)		3-5	10-12	12-15	18-25	23-25	25-30
The First Level Sand Mixing Stirring Cage	Rotation Radius (mm)	2500	3000	3000	3500	3500	4000
	RotationRange	120°	120°	120°	120°	120°	120°
	Motor Power (kW)	2.2	3	4	5.5	5.5	7.5
The Second Level Sand Mixing Stirring Cage	Rotation Radius (mm)	1350	1650	1800	1800	2000	2000
	RotationRange	270°	270°	270°	270°	270°	270°
	Motor Power (kW)	4.0	5.5	7.5	11	15	15
Sand discharge height (mm)		1280	1600	1600	1800	1850	1850
Adhesive Quantitative Accuracy		<±2

Company information
If you are any interested in our foundry sand mixer , Please contact us freely .
Warmly welcome to visit our factory! Our team waiting you for here!

---
