| 1. Conditions of Use: | 380V/3P/50Hz |
| 2. production material: | PET pellets and regularly broken pieces |
| 3. Sheet material thickness: | Thickness:δ=0.15-1.5mm |
| 4.Finished sheet width: | 800mm |
| 5.Extrusion output: | 300-350Kg/h |

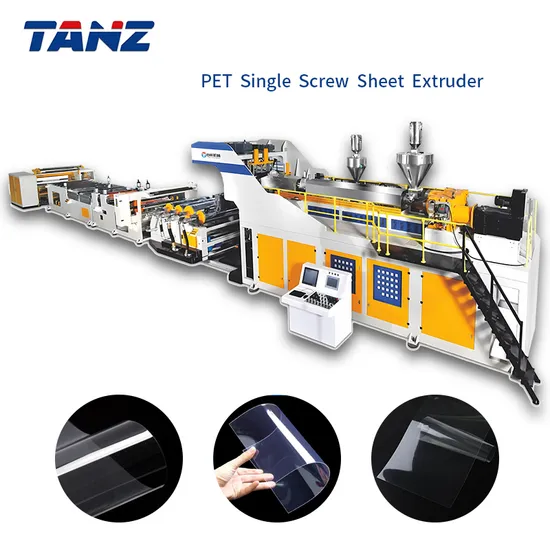

| 1 | 120/38 exhaust single screw extruder | 1 set | Include | 120 exhaust extrusion host |
| Two-point automatic suction machine | ||||
| Host quantitative feeder | ||||
| Masterbatch feeding machine | ||||
| Vacuuming system | ||||
| 2 | Hydraulic screen changer | 1set | Include | Double column screen changer |
| Hydraulic system | ||||
| 3 | Melt metering pump | 1 set | Include | Melt pump |
| flow channel | ||||
| Pressure Sensor | ||||
| Cardan shaft | ||||
| Transmission system | ||||
| 4 | Mold | 1 set | ||
| 5 | Three-roller calender | 1 set | Include | Three-roller calender |
| Hydraulic system | ||||
| 6 | Roller temperature control system | 1 set | Three-stage roller temperature control system | |
| 7 | Cooling shaping bracket | 1 set | ||
| 8 | Waste edge trimming device + waste edge winding device (both sides) | 1 set | Include | Waste edge trimming device |
| Waste edge winding device | ||||
| 9 | Silicone oil coating machine + dryer (double-sided) | 1set | Include | Silicone oil coating machine |
| Dryer | ||||
| 10 | Traction device | 1 set | ||
| 11 | Dual station winding machine | 1 set | ||
| 12 | Electrical control system | 1 set |
