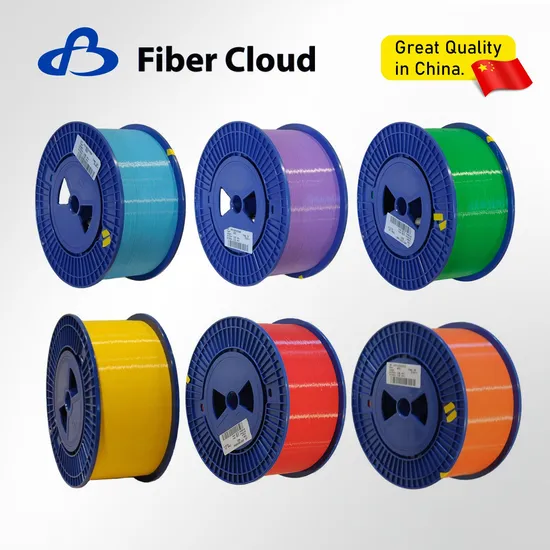

Bare Colored Single Mode G652D G657 G654 Bend-Optimized Low Loss Optical Fiber

Product Description

Bare Single-Mode G652D/G657/G654 Bend-Optimized Low Loss Optical Fiber Product Description
Low Loss Single-mode Fiber • Designed for operation over the fuerll optical spectrum from 1260-1625 nm, and hence the transmission capacity is increased
• Much lower attenuation over the full optical spectrum from 1260 nm to 1625 nm, which meet the demand of extended long distance transmission
• Outstanding optical performance supporting high-speed transmission technologies such as DWDM and CWDM
• Being compatible with existing 1310 nm equipment
• Good protection and excellent strip force stability
• Accurate geometrical parameters that insure low splicing loss and high splicing efficiency
Thanks to its broad usable optical spectrum and outstanding attenuation performance, FullBand® Plus Low Loss Single-mode Fibre is the optimum choice that supports various applications such as Ethernet, Internet Protocol (IP), Asychronous Transfer Mode (ATM), Synchronous Distribution Network (SDH) and Wavelength Division Multiplexing (WDM). FullBand® Plus Low Loss Singlemode Fibre provides wider bandwidth and much lower signal attenuation for backbone, metropolitan area and access networks. Product Parameters

Specifications (G652D)
Characteristics		Conditions	Specified values	Units
Optical Characteristics
Attenuation		1310nm	≤0.32	[dB/km]
		1383nm(after H2-aging)	≤0.31	[dB/km]
		1550nm	≤0.18	[dB/km]
		1625nm	≤0.20	[dB/km]
Attenuation vs. Wavelength		1285-1330nm, in reference to 1310nm	≤0.03	[dB/km]
Max. α difference		1525-1575nm, in reference to 1550nm	≤0.02	[dB/km]
Dispersion Coefficient		1285-1340nm	-3.5 to 3.5	[ps/(nm·km)]
		1550nm	≤18	[ps/(nm·km)]
		1625nm	≤22	[ps/(nm·km)]
Zero Dispersion Wavelength(λ0)		--	1300-1324	[nm]
Zero Dispersion Slope(S0)		--	≤0.092	[ps/(nm2·km)]
Typical Value		--	0.086	[ps/(nm2·km)]
P M D	Maximum Individual Fibre	--	≤0.1	[ps/√km]
	Link Design Value(M=20,Q=0.01%)	--	≤0.06	[ps/√km]
	Typical Value	--	0.04	[ps/√km]
Cable Cutoff Wavelength (λCC)		--	≤1260	[nm]
Mode Field Diameter(MFD)		1310nm	8.7-9.5	[μm]
		1550nm	9.8-10.8	[μm]
Effective Group Index of Refraction(Neff )		1310nm	1.466	--
		1550nm	1.467	--
Point Discontinuities		1310nm	≤0.05	[dB]
		1550nm	≤0.05	[dB]
Geometrical Characteristics
Cladding Diameter		--	125.0±0.7	[μm]
Cladding Non-Circularity		--	≤1.0	[%]
Coating Diameter		--	235-245	[μm]
Coating-Cladding Concentricity Error		--	≤12.0	[μm]
Coating Non-Circularity		--	≤6.0	[%]
Core-Cladding Concentricity Error		--	≤0.6	[μm]
Curl(radius)		--	≥4	[m]
Delivery Length		--	Up to 50.4	[km/reel]
Environmental Characteristics		1310nm, 1550nm & 1625nm
Temperature Dependence Induced Attenuation		-60ºC to +85ºC	≤0.05	[dB/km]
Temperature-Humidity Cycling Induced Attenuation		-10°C to +85°C, 98% RH	≤0.05	[dB/km]
Watersoak Dependence Induced Attenuation		23°C,for 30 days	≤0.05	[dB/km]
Damp Heat Dependence Induced Attenuation		85°C and 85% RH,for 30 days	≤0.05	[dB/km]
Dry Heat Aging		85ºC, for 30 days	≤0.05	[dB/km]
Mechanical Specification
Proof Test		--	≥9.0	[N]
		--	≥1.0	[%]
		--	≥100	[kpsi]
Macro-bend Induced Attenuation	100 Turns Around a Mandrel of 30 mm Radius	1625nm	≤0.05	[dB]
	100 Turns Around a Mandrel of 25 mm Radius	1310nm and 1550nm	≤0.05	[dB]
	1 Turn Around a Mandrel of 16 mm Radius	1550nm	≤0.05	[dB]
Coating Strip Force		typical average force	1.5	[N]
		peak force	1.3-8.9	[N]
Dynamic Fatigue Parameter(nd)		--	≥20	--
