Weiss Wbl250f Durable Variable Speed Bench Lathe with Customized Logo

Product Description

Recommended Products
WBL250LF WBL290F WBP250F

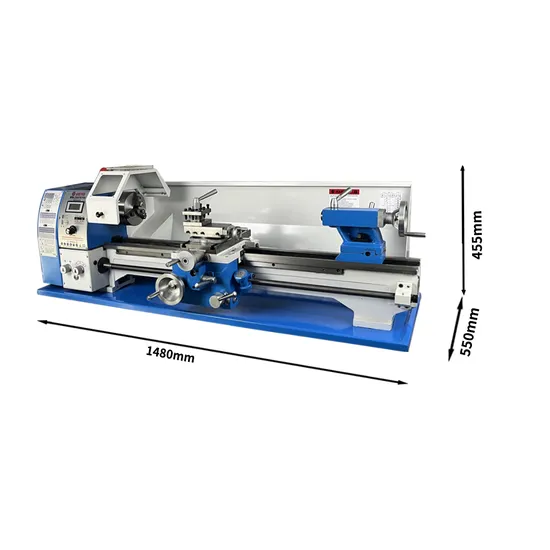

1. WEISS WBL250F bench lathe is the perfect size for garage or workshop to take on light duty jobs requiring a 250mm swing, 26mm spindle bore and 550mm between centers.

2. This lathe comes equipped with a full featured carriage and apron assemblies that provide super accurate custs and finishes.

3. POWER CROSS FEED as well as feed on the carriage. Both in, out, left&right

4. Powerful 1.5HP Brushless Motor provide variable speeds from 50 - 2000 rpm.

5. Lead screws are true Inch pitch screws on cross slide, compound slide and tailstock for easy inch measurement readings.

Want TOP quality? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	WBL250F
ITEM NO	10103256	125MM 3-JAW Chuck	Steady Rest
Distance between centers	550mm	Chip Tray	Follow Rest
Swing over bed	Ø250mm	Splash Guard	Face Plate 240mm
Swing over cross slide	Ø140mm	Toolbox and Tools	4-Jaw chuck 120mm
Width of bed	132mm		Threading Diail
Taper of spindle bore	MT4		2-Axis DRO (Magnetic Scales)
Spindle bore	26mm		3-Ais DRO(Magnetic Scales)
Number of spindle speeds	Variable		Stand
Range of spindle speeds	50-2250mm		Luxury Stand
Range of inch threads (imperial version)	8-56 T.P.I		Quick chage Tool Post (TOOA1)
Range of cross feeds	0.03-0.075mm		Turning Tools
Range of longitudinal feeds	0.06-0.32mm		ER25 collet fixture
Range of metric threads (metric version)	0.2-3.5mm		Backplate for 4-jaw chuck(125mm)
Top slide travel	65mm
Cross slide travel	105mm
Tailstock quill travel	65mm
Taper of tailstock quill	MT2
Motor (brushless)	1100W

Detalis Headstock


· Spindle is supported by high precision, Class 5, adjustable tapered roller bearings
· Lathe digital speed readout tachometer on face of machine
· Variable speed from 50-2000rpm
Electronic Driving System
· WBL250F has 1.5HP POWERFUL brushless motor with silent running
· High quality electronics used throughout machine for long term reliability
· Braking resistors increase the stability of the electrical system
· Brushless motors has high efficiency, low noise (quiet), smooth operation, long life, low maintenance costs. Especially with low energy consumption brings better economic benefits to users
Change Gear: Equipped with protective QKS8 door swtich,
All metal gears
Providing 33 kinds of inch threads and 21
kinds of metric threads cutting
Gearbox:right and left hand threads cutting, 3 kinds of feeding speeds Tailstock:with quick lock handle,drive hub,draw-down alignment

3-Jaw Self-centering Chuck Power longitudinal & cross feed Guideway induction hardened, precision ground

4-Way Tool Post Cross Slide with T-slot Table Metric/ Imperial Threading Dial
Tool& Toolbox
Factory and Delivery
Certificate
Exhibition
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer professional technical support and good after sale service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc.
3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.

---
