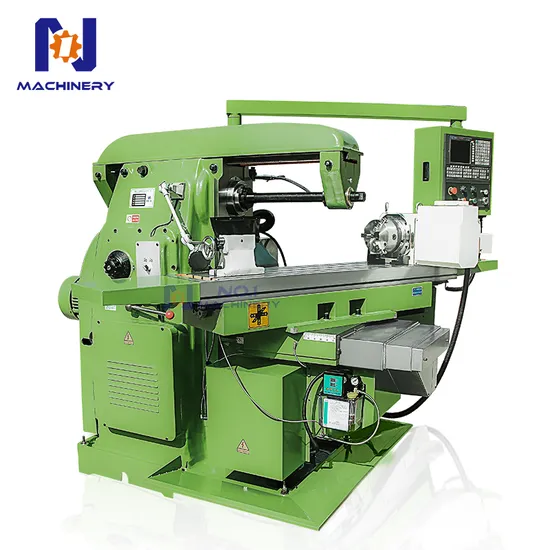

Xk6132 Horizontal and Vertical Turret Fanuc Controller 3 Axis CNC Milling Machine Fresadora CNC with CE EAC

Product Description

Product Description
Standard configuration:
Guangtai 130 system
Three axis CNC
Manual transmission of spindle
Electronicoil pump
Three-axis hard rail
Optional configuration:
SystemGSKKND
CNC dividing head
Top Tailstock
Pneumatic broach
Fully protected sheet metal
The table rotates
Specification

PARAMETER ITEM	UNIT	XK6132	XK6140
Size of worktable	mm	1500x320	1700x400
Table travel	mm	900x310x410	1000x330x400
T-groove	mm	3-14-70	3-18-90
Spindle Taper	-	ISO:50/7:24	ISO:50/7:24
Table rotation angle (optional)		±45°	±45°
Distance between spindle end face and table top	mm	20-370	30-410
Bed Vertical Guide to the spindle center line distance	mm	225-505	275-625
Spindle speed range(series)	rpm	30-1500/18	30-1500/18
Fast moving speed(x/y/z)	mm/min	6000/6000/3000	6000/3000/6000
Positioning accuracy	mm	0.020/300	0.05/300
Repeat positioning accuracy	mm	0.010/300	0.025/300
Main Drive motor power	kw	7.5	11
Coolingpump motor power	kw	0.125	0.125
Extemnal dimensions	mm	2272x1825x2094	3310x2200x2394
Weight of machine tool	kg	2850	4250

Details Display
Can install universal milling head
Realize multi-Angle milling function

Rectangular guide rail, good stability,The table and guide railare quenched by audio frequency
X/Y/Z axis auto feed, improve processing time.
The worktable can rotate ±45 degrees
Optional CNC dividing headme.
fourth-axis CNC milling.
Cnc control panel
standard guangtai 130 system
optional gsk siemens and fanuc
Electronic oil pump-automatic lubrication
Important transmission parts and bearings have perfect lubrication device
