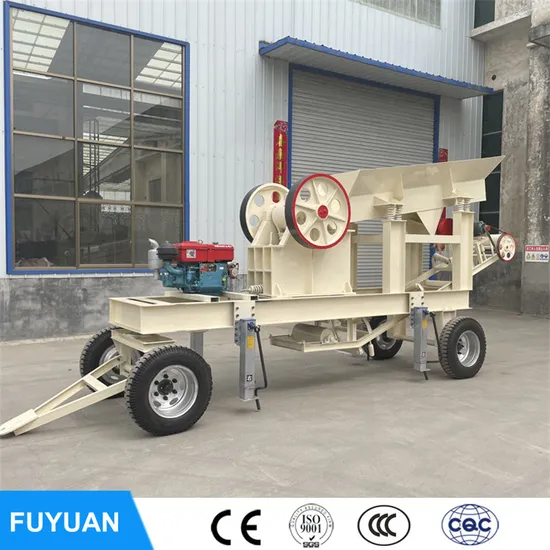

China Manufacturing Supplier Customized Best Jaw Crusher Stone Concrete Crushing Machine Diesel Engine Jaw Crusher for Sale

US$3,300.00-6,477.00 1 Set (MOQ)

Basic Info.

Application
Machinery & Hardware, Art & Craft, Chemical, Construction, Stone Industry
Drive
Electric
Crushing Style
Extruding & Milling
Compressive Strength (For Crushing)
100-250MPA
Certification
CE
Condition
New
Color
Customized
Installation
Senior Professional Engineers Assigned
Factory Visit
Welcomed Warmly
Applicaton
Mining, Construction,Stone Crushing
Weight
7t
The Machines Classification
Stones Crushing Line
Feeding Size
350mm
Dimension
1700*1732*1653mm
Origin
China
Production Capacity
20-50t/H

Packaging & Delivery

Package Size
2300.00cm * 1500.00cm * 1200.00cm
Package Gross Weight
2000.000kg

Product Description

Jaw crusher is combined with the secondary crushing equipment in the whole stone crushing line,like cone crusher and impact crusher. Due to their smaller physical size, jaw crushers are also ideal for tight spaces, such as underground mining and mobile crushing applications. Product Parameters
Common parameters of jaw crusher
Model Opening size(mm) Max feeding size(mm) Output adjust range(mm) Production capacity(t/h) Power
(kw)
PE250*400 250*400 200 20-50 5-20 15
PE400*600 400*600 350 40-100 15-60 30-37
PE500*700 500*700 425 50-100 40-110 45-55
PE600*900 600*900 480 65-160 90-180 55-75
PE750*1060 750*1060 630 80-140 110-320 90-110
PE900*1200 900*1200 750 95-165 220-450 110-132
PE1200*1500 1200*1500 1020 150-300 400-800 160-220



Jaw crusher features:
1. The jaw crusher cavity is deep and there is no dead zone, which improves the feeding capacity and output;
2. The crushing ratio is large and the product size is uniform;
3. Gasket-type discharge opening adjustment device is reliable and convenient, with a large adjustment range, which increases the flexibility of the equipment;
4. The lubrication system is safe and reliable, the replacement of parts is convenient, and the maintenance workload is small;
5. Simple structure, reliable work, low operating cost;
6. Equipment energy saving: single machine energy saving 15%~30%;
7. The adjustment range of the discharge opening is large, which can meet the requirements of different users;
8. Low noise and less dus
Working principle of stone jaw crusher motor drives the eccentric axis rotating throughthe belt pulley, so that the movable jaw approaches and leaves the fixed jaw cyclical,which makes the materials squeezed. rubbed. multi-roller crusher, etc. so that thematerials are crushed into small size, and then decline gradually, at last dischargefrom the discharging mouth
Company Profile
Henan Fuyuan Machinery Manufacturing Co., Ltd
Located in High-tech Zone, Zhengzhou City, Henan Province. Our factory was founded in 1984,covering an area of over 38, 000 square meters and a building area of over 26,000 square meters. There are more than 300 employees, including 5 senior engineers, 23 engineers and more than 60 technicians. After decades of development, the company's appearance is changing with each passing day, and the comprehensive quality of employees has been greatly improved.

FAQ
Q1: Are you trading company or manufacturer?
A: We are a professional factory with 37 years' experience.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are
not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% deposit in T/T advance, 70% balance before shipment.
Q4: How long is the warranty of your equipment? Does your company supply the spare parts?
A: The warranty period of crusher equipment is one year. And we will supply the spare parts for you at lowest cost.
Q5: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete crushing line and give you related professional advice as long as you need. We had already build many mining projects in China & Overseas.
