China Factory Steel-Plate Fixed-Column CNC Gantry Surface Grinding Machine Same as Amada

Product Description

Product Description

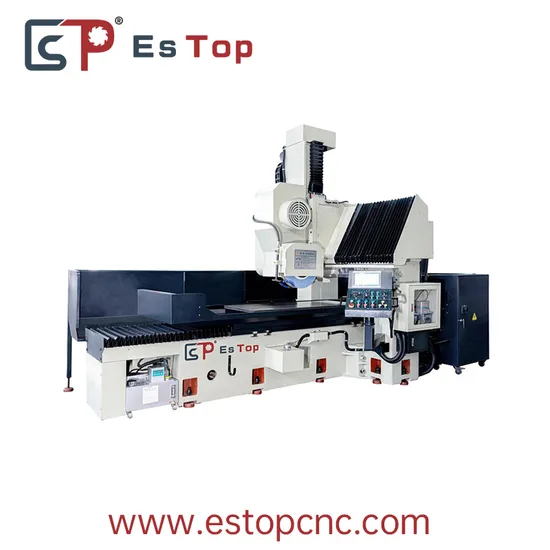

China Factory Steel-Plate Fixed-Column CNC Gantry Surface Grinding Machine Same as Amada
Gantry Surface Grinding:
These series, various in size, are the most powerful saddle type surface grinding machines that show high efficiency as well as high precision for large parts and molds.
-High precision spindle and spindle motor with lower vibration and noise
-Durable and suitable for precision grinding
-Intensive research planning and manuacture by high-elasticity structure
-Excellent durability and heavy grinding available
-4-point suspension mode cross travel guide way
Product Parameters:

Main item	Double Column Type Surface Grinding machine	Unit	ETLD-1525NC	ETLD-150200
Worktable	Electromagnet table size(x*y)	mm	2000x 1400	2000x 1500
	Left and right Xaxis travel	mm	2200
	Max center of wheel to table	mm	620
	Two column passed maximum workpiece size	mm	1780
	Worktable Maximum loading copacity	kg	5500
	Worktable feed speed	m/min	5-30
	Table t-slot specification	mm*n	18x6
Grinding wheel	Grinding wheel size max	mm	Φ500 x Φ203 x 50-75
	Spindle motor	HP*P	25x4
	(50HZ/60HZ) Grinding wheel speed	R.P.M	1450
Size	Height of machine(Move to top Height)	mm	≈3500
	Layout Floor space(Length X width)	mm	5950x3600
	Weight	kg	≈18200	≈18500

Product Category
One-stop Shopping
You can click on the picture to view the products you are interested in.
Our Service
-Technically training
On-site installation and commissioning and sample testing, one-to-one, hand-to-hand teaching, remote VR technical support, etc.
-Maintenance
Complete machine warranty for one year, lifelong maintenance, after-sales maintenance. Provide solutions within 12 hours and send field technical solutions within 48 hours.
-24/7 with customer support
We provide exclusive solutions and timely technical support for 7X24 hours online video guidance to help you improve productivity and solve your processing problems.
Company Profile
Quality Control
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Dongguan city and Chongqing city.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is your minimum order quantity and warranty?
A3: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q4: How to ensure the quality?
A4: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q5: How do we get the training for the machines?
A5: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q6. What is your trade terms?
A6: FOB, CFR, CIF or others terms are all acceptable.
Q7. What is the payment Terms ?
A7: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q8. What is the package of the machines?
A8: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q9.When is the delivery time?
A9: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q10: How to deal with the after-sales service?
A10: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.

---
