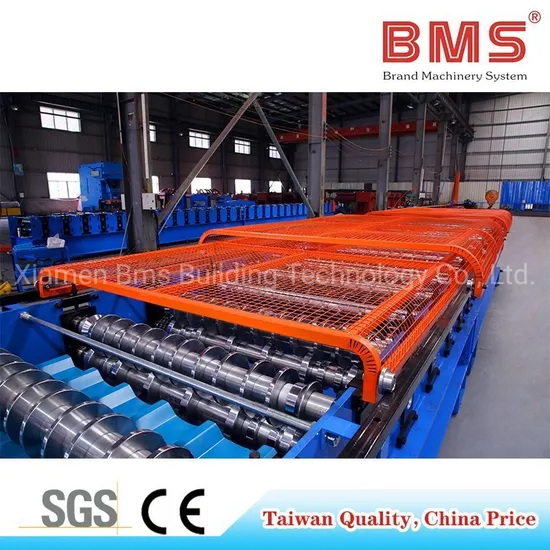

Taiwan Quality Steel Profiling Roll Forming Machine with China Price

Product Description

Taiwan Quality Steel Profiling Roll Forming Machine with China Price Product Description
Auto Roof Panel Roll Forming Machine With ISO/CE
Material
Effective width: 1000 mm
Material Thickness:0.3-0.8mm
Applicable material: Prepainted galvanized steel(PPGI)
with yield strength Q235-Q350Mpa Main Machine
With feeding material guide, body frame made from H400 type steel by welding
Side wall thickness: Q235 t18mm ;
Rollers manufactured from 45# steel,CNC lathes,Heat Treatment,hard Chrome Coated
Shafts Diameter=ф80/ф85mm ,precision machined
Gear/Sprocket driving,about 18-step to form
Main Motor(Servo motor) =7.5KW, Frequency speed control
Chain size: one inch with 18teeth
All the screw bolts with grade 8.8
Real forming speed 20m/min
Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 4KW ;
Cutting tool material: Cr12MoV,Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine hydraulic station

PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand)/Schneider(French brand)
Inverter	Siemens (German brand)/Schneider(French brand)
7-Inch Color Touch Screen	Siemens (German brand)/Schneider(French brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens(German brand)/Schneider(French brand)
Air Switch	LG-LS(Korea brand) Cut-to-Length Tolerance≤±1 mm Control Voltage 24V

After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade

Minimum order quantity (MOQ)	1 Set
Delivery time	about 45 workdays
Port of loading	port of Xiamen
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea, Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia, Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion), loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
