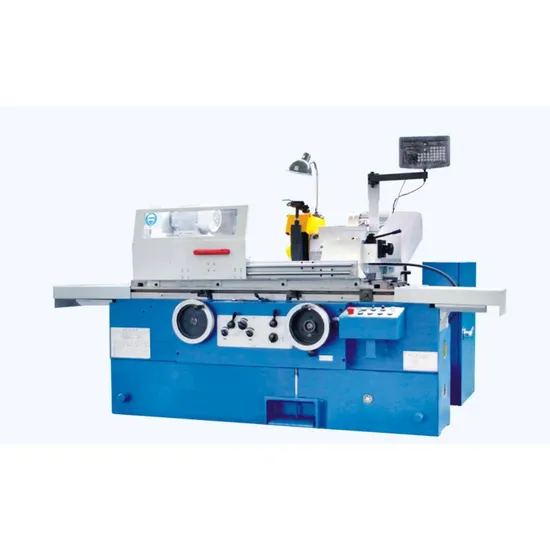

Ma1320hcylindrical Grinding Machine/Ma1420huniversal Cylindrical Grinding Machine

Product Description

Product Description
This machine is a major grinder professional advantages ofmanufacturing units in the the M130H, M1420H typecylindrical grinder on the basis of draw to improve improveHeavy Duty Grinder, with high cutting precision, high rigidityand high efficiency. Suitable for grinding cylindrical andconical workpiece.
·The workpiece of machine , cylindrical grinding wheel, theinner circle of the grinding wheel, oil pump and cooling pumpby an independent motor drive.
· The longitudinal movement of the machine table by the
hydraulic continuously variable transmission can also be hand-
wheel drive, table lubrication Orifice Compensated unloading
form.
·Grinding wheel frame transverse feeding fine tuning can bemade by the hydraulic feed and fast and automatic cycle, twofeed hand wheel is also available to achieve the thickness.
· Grinding wheel rack main shaft diameters, motor powerincrease, grinding wheel rack oil pool temperature rise is small,high grinding rate.
Machine moving parts with electrical, hydraulic and mechanical interlocking structure

Product Parameters

Description		unit	MA1320H×500/750	MA1420H×500/750
Grinding diameter	(O.D.)with steady-rest min/max	mm	8/60	8/60
	without steady-rest min/max	mm	8/200	8/200
	(I.D.)with steady-rest min/max	mm		35/100
	without steady-rest min/max	mm		25/100
Max.work weight		kg	50	50
Max.grinding length (O.D.)		mm	500/750	500/750
(I.D.)		mm		125
Center height		mm	135	135
Distance between centers		mm	500	500
Wheel dimensions(O.D.xWxl.D)		mm	Max. φ400×50×φ203, Min,φ280×50×φ203	Max. φ400×50×φ203, Min. φ280×50xφ203
Peripheral speed of grinding wheel		m/s	38	38
Wheel size forint.Grinding attachment		mm		Max. φ50×40xφ16,Min.45×35×10
Wheelhead spindle speed		r/min	1670	1670
Wheelhead rapid advance &wighdrawal		mm	50	50
Total motor power		kw	5	6.52
Overall dimnsions(LxWxH)		mm	2500×1800×1650 3000×1800×1650	2500×1800×1650 3000×1800×1650
Machine weight		kg	3040	3200
