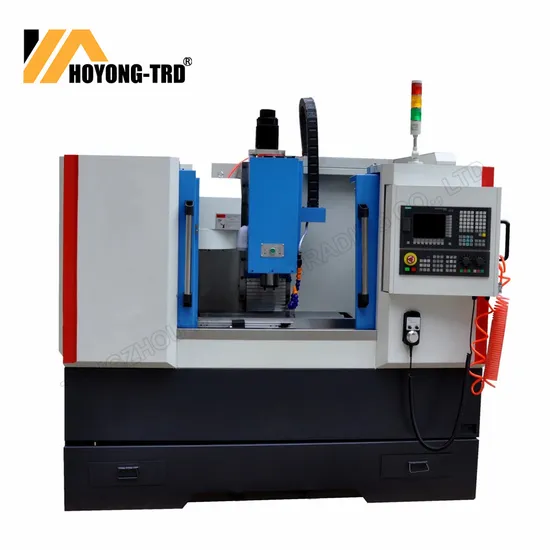

CNC Milling Machine Factory Price with CE Standard Xk7125 Xk7132 Xk7136 Xk7145

Product Description

CNC MILLING MACHINE FEATURES:
1. Used for machining box parts, shell parts, disc-shaped parts.
2. Rectangular guide-way with plastic-sticking, high rigidity, high stability and strong support.
3. Column and guide way is ground precisely with high precision
4. Spindle is equipped with tool-hit cylinder to make tool released and clamped pneumatically. Tool-change is more safely and quickly.
5. CNC control system could be adapted by step motor or servo motor, providing good cost-effective scheme to customers.
SPECIFICATOINS:

ITEM	XK7125
X-Axis travel	535mm
Y-Axis travel	320mm
Z-Axis travel	375mm
Distance from Spindle nose to worktable surface	25-425mm
Distance from center of spindle to surface of column ram	345mm
T slot (width x no.)	16mmX3
Worktable size	1000X250mm
Max.loading of worktable	120Kg
Power of spindle motor	1.5/2.2KW
Spindle speed	4000/(or 8000/12000)
Spindle taper	BT30
Spindle bearing	P4
Rapid traverse speed of 3 axes	X /Y:15m/min(servo)
	Z:15m/min(servo)
Cutting feeding rate	0-2000mm/min
Min.set unit & moving unit	0.001mm
Pitch of X/Y axes	6mm
Pitch of Z axis	6mm
Positioning accuracy (300mm)	±0.008
Repeat accuracy (300mm)	±0.005
Changing way of tools	Manual
Tool spec. max.dia. (neighboring Tool) x weight x length	φ60mmX3.5KgX175
Machine weight	1700kg
Air pressure	0.6MPa
Power of cooling pump for cutting	370W
Overall size	1516X1764X1708mm

---
