Basic Info.
Battery
Lead-Acid Battery
Overall Dimmension
2985*1180*1360
Cargo Box Size(mm)
1500*1100*490
Minumum Ground Clearance(mm)
150
Minimum Turning Radius(M)
4
Motor, Controller(W)
60V1000W
Range Per Charging(Km)
50-110
Front/Rear Brake Type
Front/Rear:Drum
Transport Package
Iron/Carton Package
Production Capacity
100, 000 Unit Per Month
Packaging & Delivery
Package Size
580.00cm * 230.00cm * 230.00cm
Package Gross Weight
6100.000kg
Product Description
Main Products
Product Description

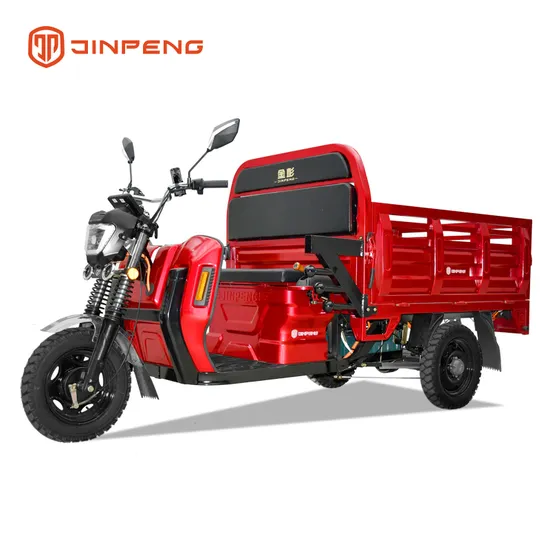

Dls150 PRO China Supplying Electric Tricycle 2023 Approval New Energy Resources Electric Loader High Quality for Cargo
DLS150PRO--Strong power excellent performance
Equipped with the national patent "power with the core" power system
Hydraulic shock absorption is more comfortable for ridingSafety protection strong endurance
Automobile metal plate technical
New designed integrated punching cargo box.
JINPENG is established in 2004, with rich experience in electric vehicle manufacturing. JINPENG specializes in the R&D, production and sales of various electric vehicles. Main product categories:electric passenger tricycles, electric cargo tricycles, electric motorcycles, electric mobility scooters, low speed cars, high speed cars etc.
| Optional colors | red, blue, green, yellow, grey, white |
| L×W×H(mm) | 2985*1180*1360 |
| Cargo Box size(mm) | 1500*1100*490 |
| Wheel base(mm) | 2030 |
| Wheel track(mm) | 950 |
| Minumum ground clearance(mm) | ≥150 |
| Minimum turning radius(m) | ≤4 |
| Curb weight(kg) | 245 |
| Rated load (kg) | 400 |
| Max speed(km/h) | 30 |
| Grade ability(%) | ≤20 |
| Battery | 60V45AH-100AH |
| Motor, Controller(w) | 60V1000W |
| Range per charging(km) | 50-110 |
| Charging time(h) | 6~8h |
| Front shock absorber | φ43 Drum shock absorber |
| Rear shock absorber | 50×120 seven pieces leaf spring |
| Front/Rear tyre | 3.75-12/3.75-12 |
| Rim type | steel |
| Front/Rear brake type | Front/Rear:Drum |
| Parking brake | Hand brake |
| Rear axle structure | Integrated rear axle |
| SKD | 50Units/40HQ 15 Units/20GP |
| SKD(Steel Frame) | 32 Units/40HQ 12 Units/20GP |
