Numerical Control Beam Saw Machine Wood Working Automatic Computer Saw Machine

Product Description

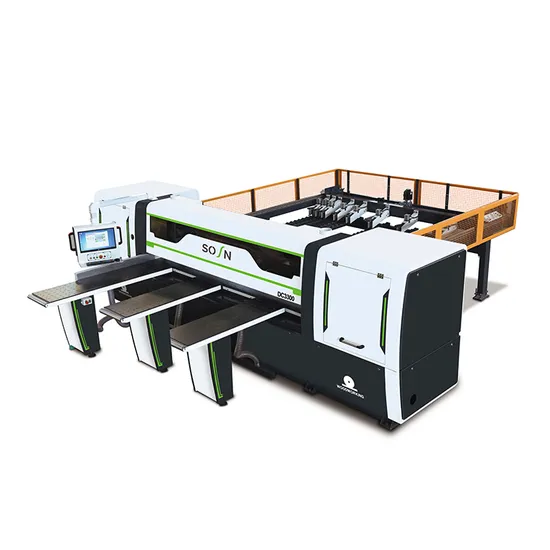

Affordable, efficient and expandable-- DZ3300 computer beam saw machine.
Give you a much more precise efficient cutting work.
• Sawing motor power: 15.5kw+2.2kw
• Cutting length: 3200 mm
• Pneumatic gripers: 10 groups
Features:
This computer panel saw machine is capable of high-performance cutting operations in increasingly shorter times.
SOSN beam saw whole frame is integrated to ensure that the work surface is kept on a flat surface to ensure cutting accuracy.
The beam is made of 30mm thick steel plate, weighing 1.1T, adopts Taiwan30 linear guide which is same as HOMAG, 5.6 meters, longer service life.
Technical parameter:

Control system	PC with cutting optimization software
Max.cutting length	3300mm
Max.cutting thickness	120mm
Min.cutting size	35*35mm
Saw blade system	Main saw blade	Size: Φ450*75mm
		Speed: 4000r/min
	Scoring saw blade	Size: Φ200*50mm
		Speed: 6000r/min
Saw system	Saw carrier forward speed	100m/min
	Saw carrier backward speed	120m/min
	Sawing motor power	18.5kw/15kw+2.2kw
	Saw carrier driving motor	1.8kw
Auto feeding system	Pneumatic holding gripers	10 groups
	Feeding servo motor	1.8kw
Loading system	Air floating table	3pcs
	Table height	960mm
	Floating fan power	3kw
Working air pressure	6-7kg/cm²
Net Weight	5700KG
Overall size	6600*6400*1800mm

Configuration of computer beam saw DZ-3300
1		PC control system Advantage IPC original, Siemens PLC LCD system; Safe and reliable operation, editable management of sawing and sawing tasks; compatible with optimized sawing software.
2		Side aligning device Linear guide way structure fixing cutting panel width side, control panels not move or shake when sawing, ensure width sawing precision. Pressure can be adjusted according to difference thickness, weight and material, ensure the precision of sawing dimension.
3		Saw carriage driving system with liner guideway Adopts with servo control and transmission with gears & racks, maximum moving speed is up to 120m/min. The whole frame is integrated to ensure that the work surface is kept on a flat surface to ensure cutting accuracy. The beam is made of 30mm thick steel plate, weighing 1.1T Taiwan30 linear guide, 5.6 meters, loner service life. Main frame adopting annealing technology, ensure frame non- deformation, High efficiency and stable quality.
4		Saw blades Two saw blades are installed vertically, ensure cutting precision. 18.5kw+2.2kw sawing motors, max cutting thickness 120mm. saw blade is installed vertically, nut locking device, easy to assemble without adjustment; Saw cutting to ensure accuracy and no chipping.
5		Pusher driving system Pusher adopts high precision worm reduce ans feeding gears and racks to make an accurate sawing.
6		10 sets of clamps. Pneumatic holding gripers, can give the panel steadily, highly reduce labor intensity, and greatly improve production efficiency, minimum holding panel size is 35*35mm.
7		Working table equipped with Air-floating balls Effectively protects panel from scratching and much easier to feed in panel.
8		Electrical components Siemens/Fatek PLC, Schneiderr electric components. With high reliability, strong anti-interference ability and low failure rate.

--Delivery: We can guarantee delivery on time. We also can sign on-time delivery contracts. If we can't deliver on time, we will give the product a corresponding discount. --Package: After testing the cnc computer beam saw machine well, our workers will do cleaning work before package. stretchy film for the whole machine and some spare parts which will also be seperatly packed well by strong stretch film. --Guarantee: The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time. --Technical support: Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online. We provide English version manual and Operational video. Engineer available to service machinery overseas. --After sales services: Our machine is installed and tested well before delivery to you, when you get the machine, you just need to install it and then can operated, of course ,all of these steps our technician will give you professional help. No worry for any installation or operation of this computer beam saw, we are here to help you. Heavy duty frame, Unique internal structure, optimization software, top-brand spare parts, professional installation workers, intime- after sale service, This machine surely can highly improve your working efficiency and precision.
We have more video details to show you, contact us now to start your working upgrading :)

---
