Durable New Technology Protecting Products Automatic Cutting with CE Beauty Industry

US$25,000.00 1 sets (MOQ)

Basic Info.

Model NO.
ST-200
Paper Core Usage
Paper Cutting Machine
Tube Machine Type
Paper Cutting Machine
Gumming Type
Paper Cutting Machine
Layers of Roll Paper
Paper Cutting Machine
Reelpipe Speed
Paper Cutting Machine
Wall Thickness of Paper Tube
Paper Cutting Machine
Certification
CE
Condition
New
After-sales Service
One Year Warranty
Air Supply
0.5MPa-0.8MPa
Processing Type
Cutting Machine
Dimension(L*W*H)
2160X1380X1850mm
Showroom Location
Egypt, UAE
Round Knife Size
610mm
Raw Material
Paper
Weight
1500 Kg
Warranty of Core Components
1.5 Years
Name
High Speed White Soft Tissue Paper Logsaw Machine
Product Type
Facial Tissue
Capacity
60-200 Cuts/Min
Cutting Length
Can Be Freely Set
Voltage
380V 50Hz
Power
10kw
Transport Package
Export Stand Wooden Case Packing
Trademark
SHENGTAI
Origin
Zhejiang, China
Production Capacity
10 Set/Sets Per Month, 60-200 Cuts/Min

Product Description

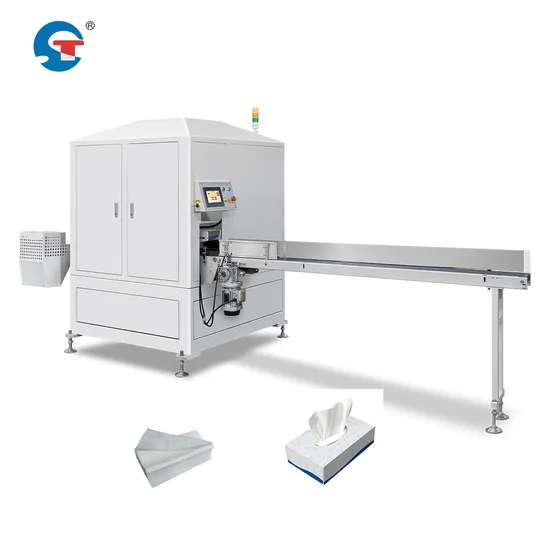

Facial Tissue Paper slitting machine cut to pieces cutting machine
Product profile
Product profile
Main technical parameters:
Item/model
ST-200 (single passage)
Raw material specification
Width 45-110mm adjustable, thickness 60-120mm adjustable
(products of other sizes can be customized)
Production capacity
60-200 (cuts/minute)
Cutting length
Can be freely set (within the adjustable range)
Round knife size
Φ610mm
Power
Three-phase four-wire
380V 50Hz 10KW
Air supply
0.5Mpa-0.8Mpa
Air consumption
120-160L/H
Main machine part
L2160×W1380×H1850mm
Machine weight
1500KG


Electrical List:
No.
Item Name
Brand
Country
1
Touch Screen
Omron
Japan
2
PLC
Panasonic
Japan
3
Frequency
Panasonic
Japan
4
Photoelectric switch
Omron
Japan
5
Proximity switch
Omron
Japan
6
Intermediate Relay
Omron
Japan
7
Button switch
Schneide
French
8
AC contactor
Schneide
French
9
Emergency stop switch
Schneide
French
10
Magnetic valve
JELPC
Germany
11
Decelerating motor
HANXING
China
12
Servo Motor
Delta
Taiwan
13
Timing belt
Panasonic
Japan

(This list is for reference only,in the actual production there may be some difference with this list)
