Factory Offer 512Hz Pipe Locator 30m Sewer Pipe Inspection Video Camera Recording DVR Monitor System

Product Description

Factory Offer 512HZ Pipe Locator 30m Sewer Pipe Inspection Video Camera Recording DVR Monitor System

Usage of the pipeline inspection camera :
1. Tubular/Water Pipe Cleaning: helps to clean, rust, corrosion, dust and crack after the pipe is inspected.
2.Shipbuilding industry: used to inspect boilers, steam turbines, diesel engines, pipelines.
3.Industrial machinery: used to check for engine scars or wear, gearboxes, hydraulic systems, greatly reducing downtime.
4. Electronics, electronics industry: used to confirm the wiring status of the product, check the working condition of the machine, etc

4MP 23MM camera + 30M push cable+ professional cable reel + 10inch 4K monitor

Factory Offer 512HZ Pipe Locator 30m Sewer Pipe Inspection Video Camera Recording DVR Monitor System

Main points for pipeline inspection camera
*4MP Sony Sensor Resolution:2560*1440px
*View angle:180°view angle
*Light source: 12 LED, brightness is adjustable via monitor
*23mm diameter camera with 2 skids, 40mm and 90mm
*Cable Reel Material: Stainless steel, with brake
*Cable material:Glass fiber, 30m, Diameter:7.5mm
*Monitor bracket: Removeable from the cable reel
*4colors removeable Rubber Corner protectors
*10.1 inch touch screen resolution:1280*800pix,IP66
Video input:HD 4K,2K,1080P,720P, 480P AHD,CVBS video input
Video Output: HDMI 1080P
Support 4K,2K recording;12MP photo and photo notes.
Support 10 times zoom,image flip,inner keyboard to edit photos, playback, file lock with password
Video compression format:H.264
Max Storage: up to 256GB TF card,default 64GB
Compressed video and audio are synchronous
6200mAh exchangeable and removeable Li-battery
Support 12 Voltage power output for camera
WiFi Wireless transmission and view on mobile,via APP

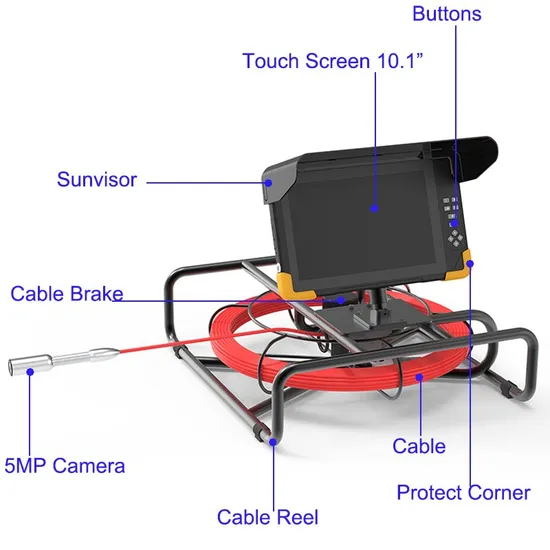

Details Pictures of Pipeline inspection system

Factory Offer 512HZ Pipe Locator 30m Sewer Pipe Inspection Video Camera Recording DVR Monitor System

Specifications for Pipeline inspection system

Camera	Effective resolution	5.0 Mega Pixel, 2560*1440px
	Video output format	AHD
	Video Frane Rate	PAL: 1080P@25FPS, NTSC:1080P@30fps
	Camera Dimension	ø28mm*57mm total length with spring: 133mm
	Light source	12 LED
	Camera Housing	316L stainless steel, sapphire glass
	Lens View angle	180°
	Light source	12 LEDS
	Brightness of the LEDS	Controllable via monitor
Cable	Length	10--60m(optional)
	Material	Glass fiber cable
	Diameter	5.0mm (optional)
Cable Reel	Size	L*W*H=42*42*20cm
	Brake	With Brake
Recording Monitor	Display	10.1 inch
	Screen Resolution	1280*800 px
	Touch screen	capacitive touch
	Video recording	2K(4:3): 2560x1944
		2K(16:9): 2560x1440
	Video input	AHD
	Video format	MP4
	Photo	12MP,8MP,4MP,2MP (JPG)
	Video Output	HDMI 1080P
	Compression mode	H. 264 video compression
	Audio input/output	1.0Vp-p (20Hz-20KHz)
	Speaker Output	1W
	Camera LED Control	PWN
	File System Support	FAT32
	Memory card	TF card 2GB-256GB
	Language	China, English, South Korea, Russia, German, French, Ukrainianetc
	Voltage	DC :12V USB DC:5V
	WiFi Protocol	802.11 a/b
	WiFi Channel	2.4000-2.4835Ghz
	WiFi power	<16dBm
	Power Supply	DC 12V 2.5A
	Lithium battery capacity	6200mAh
	Maximum charging power	15W
	working hours	6-8 Hours
	Operating temperature	-20ºC to 50ºC
	Waterproof grade	IP65
	Size	L*W*H 30*19*1.8CM
	Weight	870g
Package	Monitor with ABS plastic suitcase	Total size after packing:47*45.5*30cm, G.W:13KG
