3 Axis High Speed CNC Engraving Machine Milling Machining Center Machinery

US$28,000.00
1 Piece
US$18,000.00
2+ Pieces

Basic Info.

Model NO.
EM870
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Spindle Taper
Bt30
Spindle Motor
7.5kw
System
Syntec/Mitsubishi/Fanuc/Siemens
Max Load
400kg
Name
Cutting Mold CNC Milling Machine
X/Y/Z Speed
24/24/124 M/Min
Tool Alignment
Auto Tool Checking
Working Table
800*1000
Precision
+-0.005/300mm
Repeat Precision
+-0.003mm
Power
5.5kw 380V 3 Phase
Spindle Speed
24000 Rpm
Max Working Speed
6m/ Min
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Mold
Type
Engraving Milling Machine
Transport Package
Sea Worthy Plywood Case
Specification
3400*2100*2600
Trademark
WT
Origin
Dongguan City China Prc
HS Code
8459310000
Production Capacity
2000PCS/Year

Packaging & Delivery

Package Size
2450.00cm * 2150.00cm * 2673.00cm
Package Gross Weight
4800.000kg

Product Description

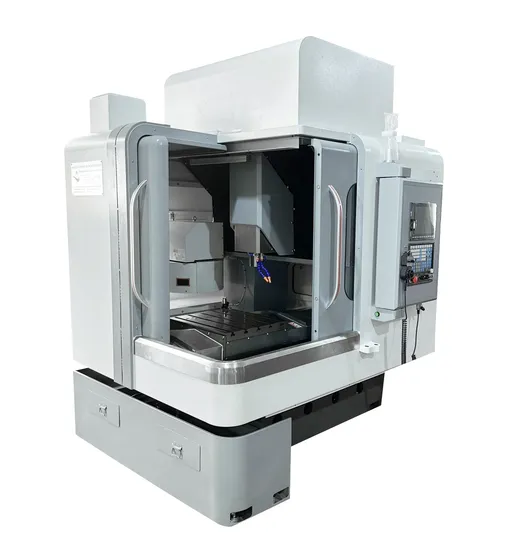

EM-870 CNC Cutting Machine Engraving and Milling Machine Center Centro De Usinagem
Product Description
CNC Engraving And Milling Machine For Steel Metal Cutting Embossing Mold Is A Tool Machine Center Which can be engraved or milled. On the basis of the engraving machine, the power of the main shaft and the servo motor is increased, the bearing capacity of the bed is increased, and the high speed of the main shaft is maintained, and more importantly, the precision is high. The engraving and milling machine is also developing towards high speed, which is generally called high-speed machine. It has stronger cutting ability and very high machining accuracy. It can also directly process materials with a hardness above HRC60 and form it at one time. It is widly used in Metal Copper Aluminum Precision Milling And Engraving.
Product Paramenters
Item Unit T-540 T-650 T-760 T-870 T-1080
X-axis travel mm 400 600 600 800 1000
Y-axis travel mm 500 600 700 700 800
Z-axis travel mm 200 260 280 350 500
Spindle nose to table mm 50-220 50-310 30-290 70-470 70-470
Three-axis guide width X/Y:30 Z:25 X/Y:30 Z:25 X/Y/Z:30 X/Y/Z:MSA35 X/Y/Z:MSA35
Table size mm 500*400 600*600 600*700 800*800 800*1000
T-slot mm 6*16*90 6*16*90 6*16*90 7*18*100 9*18*100
Max load capability kg 250 300 300 400 400
Standard spindle Motorized spindle Motorized spindle Motorized spindle Motorized spindle Motorized spindle
Spindle speed rpm 3000-24000 3000-24000 3000-24000 3000-24000 3000-24000
Spindle power kw 3 3 3 5.5 5.5
Spindle taper ER25/BT30 ER25/BT30 ER25/BT30 ER25/BT30 ER25/BT30
Maximum cutting feed rate
(X/Y/Z)		 mm/min 8000 8000 8000 8000 8000
Rapid speed(X/Y/Z) m/min X/Y/Z:15 X/Y/Z:15 X/Y/Z:15 X/Y/Z:24 X/Y/ Z:24
Ball screw diameter/pitch mm X/Y/Z:32/5 X/Y/Z:32/5 X/Y/Z:32/5 X/Y:40/6 Z:32/5 X/Y:40/6 Z:32/5
Positioning accuracy mm ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300
Repeatability mm ±0.003 ±0.003 ±0.003 ±0.003 ±0.003
Air pressure kgf/cm² 6 6 6 6 6
Net weight of machine kg 3200 3400 3600 4800 5300
Area mm² 1950*1895 1950*1895 1950*1895 2450*2150 2750*2150
Machine height mm 2355 2355 2355 2673 2673
System Syntec 21MA/E80
