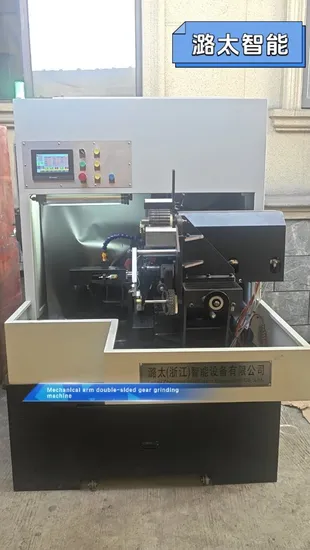

Saw Blade Sharpening Machine, Mechanical Arm Double-Sided Saw Grinder

Product Description

Machine features
1. This machine is a special automatic equipment for grinding alloy circular saw blade on both sides.
2. The overall working part adopts thickening and strengthening casting base + guide slide block, which has good stability and higher precision of grinding products.
3. The use of manipulator up and down saw blade, simple and convenient operation, one person can operate multiple equipment.
4.Knife screen adjustment, can be arbitrarily set the grinding wheel during the process of feed and return tool combination mode.
5.The main part is controlled by servo, servo driven gear more accurate and stable.
6.Grinding wheel grinding has automatic compensation function, grinding wheel wear automatic compensation.
7.The machine is equipped with a hand-held pulse hand wheel, which makes it more convenient to adjust the machine.
8.The machine is equipped with automatic oil supply lubrication system, which can effectively increase the service life of the linear guide slide.
Technical parameter

Blade Diameter	Ø110~Ø305			mm
Range of tooth pitch	7~48			mm
Front angle	0°~25°			°
Grinding wheel specifications	Ø100×Ø20			mm
Grinding wheel stroke	0~28			mm
Grinding wheel speed	6500			r/min
Working air pressure	≥0.45			MPa
Supply voltage	AC380V50Hz			V
Power	2.5			KW
Weight	1300			Kg
Machine tool dimensions	1650×1250×1850			mm

---
