PP PE HDPE Plastic Tank Container Barrel Bottle Drum Pallet Ball Chemical Bucket

Product Description

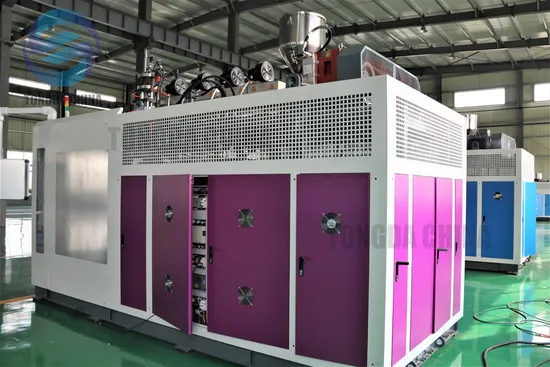

High Quality Plastic Blow Molding Machine
Model: YDSeriesThe blow molding machine model YD series can produce bottle, kettle, can, bucket etc. The machine is especially designed for producing with material such as PE, PP etc.
Basic installation including Die head: Continous centre-feed die head Extrusion system: Adopt imported automatic temperature controlling device. Drive the screw with motor reducer to realize stepless regulating Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder. Blowing device: with upper blowing type Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle. Sevo energy saving system is optional.
Technical data and parts instructions of blow molding machine for series of FJ (the specification is only for your reference)

Model Series			YD70 5L single station	YD80 12L single station	YD70II 2L double station	YD80II 5L double station	YD90II 12L double station
Extrusion system	Screw diameter(MM)		65	80	65	80	90
	LD		24	24	24	24	24
	Extrusion power (KW)		18.5	30	18.5	30	45
	Plasticizing capacity (KG/H)		60	90	60	90	130
Clamping system	Mold platen dimension (W*H, MM)		380X360	550x450	350X350	380X360	550x450
	Mold moving stroke (MM)		425	620	425	460	660
	Clamping stroke (MM)		200-560	240-610	150-450	200-560	240-610
	Clamping force (KN)		100	200	58	100	200
Die head	Centre distance (MM)	double	150	280	130	150	280
		three	110	150-180	80	110	150-180
		four	80	120	60	120	120
		six	---	80	---	---	80
Hydraulic system	Oil pump motor power (KW)		11	15	11	22	30
	System pressure (Mpa)		12	12	12	12	12
Common data	Voltage/ Frequency		380v/50Hz	380v/50Hz	380v/50Hz	380v/50Hz	380v/50Hz
	Total rated power (KW)		45	70	48	78	108
	L*W*H (MM)		3.7X1.8X2.7	4.4X2.2X2.8	3.2X1.7X2.6	4.2X3.0X2.8	4.8X4.3X2.97

Components

Item	Technical content
1)Hydraulic system	Main oil pump Sumitomo servo controlling (Japan)/ FUXIN normal oil pump Hydraulic valve: REXROTH (Germany), JILI (Taiwan), YUKEN(Japan) Oil way proportional pressure controlling Sealing: HANSHENG(Taiwan)
2)Electric system	Frequency converter:TE (France) Controlling system: B&R full machine controlling system (Austria) or Panasonic PLC as option(deferent price) Contactor:TE (France) Relay:OMRON (Japan) Air switch:MERLIN GERIN (France)
3)Clamping system	Crank arm clamping device 55 series mold moving linear guideway: KATE (Taiwan)
4)Die head system	Die head structure: continuous extrusion type, special servo single die head
5)Extrusion system	Driving form:Frequency control Reducer:Alloy steel hard tooth gear box Barrel screw material: High quality nitriding steel 38CrMoAlA Head part of screw:Wear-resisting hard alloy
6)Pneumatic system	Main air valve:AFESTO (Germany), AIRTAC (Taiwan) Main air cylinder: AIRTAC (Taiwan)

Components
Founded in 1970, Yuanda Group is committed to research and development and production of plastic molding equipment,Such as the Extrusion blow molding machine , PET blow molding machine ,Injection blow molding machine (IBM machine), Injection molding machine ect. including the peripheral equipment , such as refrigeration equipment and power generation system equipment. With more than 29 years old working expereice , we can offer the whole equipment for customer plastic factory produce complete project,and strong technical support and advanced complete sets of equipment for many customers in China and overseas.
Our Blow molding machine with best quality in China, due of our strong technical in this field. all important moving parts, we will study and check by computer simulation ADAMS and finite element analysis by ANSYS, advanced techincal in this field industry.so our machine with long life , win more and more good reputation from oversea.

assemblying machine , every process will be inspected by special person ,all work flow according to ISO9001 standard.our blow molding machine is best quality than others , because of our special manufactur process and best material , such as the following pictures.
Our Certification

The whole service flow is divided in pre-sale stage, manufacturing stage, installation stage and after sales service. Good communication and best advanced technical support for every customer, we always find out the best project for every customer .
Workflow Process
Our Advantages
Yuanda Group can supply the best complete line according to client product requirement
1. Advanced servo system , Moog valve from Japan , high precision and high speed , save energy and high efficient
2. Act as optional , client can choose the 3D manipulator, in order to reduce labor cost and improve production efficienty
3. Advanced hydraulic cylinder , all technical sourced from Germany , floating adjustable movement , quickly speed and quiet
4. Machine can connect with the leak tester in line , convenience , save labor cost
5. Heater cover material stainless steel with ceramic heater inside , safty , long life and energy saving 30%
6. Oil pump from USA , mainly parts from Europe, best quality

7. Flex arm clamping enhance template structure, strong Power , high precision !
8. Servo motor from Physis Italy , high speed , save energy and high efficient
9. Color control touch screen with Moog parision from Japan , more convenient operation ,with remote control module , we can remote debugging ,modify and maintain on line , it is very easy for client to solve all problems .
10. Machine can connect with the conveyor in line directly, convenience , save labor cost, save space
11. Hydraulic system and valves from Yuken Industry Japan
12. Aviation military-grade wire connector , stable ,safe and easy to install
Yuanda Group has gained huge trust from international customers based on providing high quality blow molding machines and perfect aftersales service. Yuanda machines have been delivered to America,Poland,Mexico,Colombia,Peru,Argentina,Chile,Indonesia,Malaysia,Vietnam,Saudi Arabia, South Africa,Egypt and so on.
about many other advanced technical data, please require me !
Due to the company's fast technology update and technical confidentiality,for blow molding machine,Extrusion Blow Molding ,Injection blow molding machine ,PET blow molding machine , injection molding machine , blowing mould,plastic bottle making machine,plastic bottle mould ,bottle machine , relevant advanced technical parameters must be consulted our sales engineers. 500ml 1L 2L 3L 4L 5L Single Head With Double Stations Plastic Extrusion Blow Molding Moulding Machine Of Lowest Price

---
