Netengine Ne20e Series Router Cr2m04basa02

Product Description

CR2M04BASA02
Model:
Hu*we* NetEngine NE20E Series Router CR2M04BASA02 Detail:
NE20E-S 4 AC Basic Configuration Includes NE20E-S 4 Chassis,2*MPUE,2*AC Power,Power cord,without Software Charge and Document Overview
NE20E-S 4 AC Basic Configuration Includes NE20E-S 4 Chassis,2*MPUE,2*AC Power,Power cord,without Software Charge and Document
Overview (CR2M04BASA02) NetEngine NE20E-S series universal service router CR2M04BASA02 provides powerful service access and aggregation capabilities and various features, such as Layer 2/3 VPN, MPLS, Multicast, QoS, IPv4/IPv6, etc and the flexible design to provide all-around network solution for enterprise users, staisfying diversified service requirements in the future. CR2M04BASA02 NE20E-S4 AC basic configuration includes NE20E-S 4 Chassis, 2 * MPUE, 2 * AC Power, Power cord.
The NE20E-S uses the latest VRP8 platform, which is also used by the NE5000E core router. The VRP uses the Resilient Distributed Framework (RDF), with separated management plane, service plane, data plane, and monitoring module, greatly increasing the system flexibility, reliability, manageability, and expansibility. The NE20E-S supports various interface types (E1/CE1, POS, CPOS, GE, 10GE, and 40GE) and high-density fixed ports to provide access and aggregation WAN services as well as Ethernet multi-service transmission platform (MSTP) aggregation services, satisfying various service requirements.

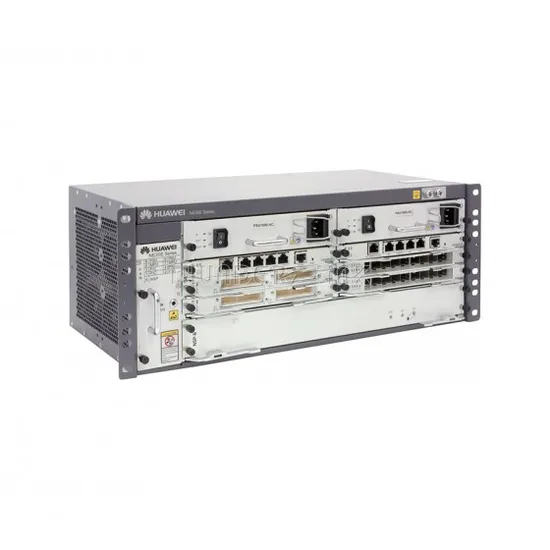

Quick Specs Figure 1 shows the appearance of Router - CR2M04BASA02.

Table 1 shows the Quick Specs.

Product Code	Router - CR2M04BASA02
Forwarding Capacity	480 Gbit/s
Forwarding Performance	180 Mpps
Fixed Ports	none
Number of Slots	2 MPUs 1 NSP 4 PICs
Power Consumption (in full configuration)	456W (AC)
Weight	18.1 kg (AC)
Dimensions (W x D x H)	175 mm x 442 mm x 220 mm (AC, 4U)

Compare to Similar Items Table 3 shows the comparison between CR2M04BASA02 and CR2P2EBASD10.

Model	CR2M04BASA02	CR2P2EBASD10
Forwarding Capacity	480 Gbit/s	160 Gbit/s
Forwarding Performance	180 Mpps	70 Mpps
Fixed Ports	none	2 x 10 GE(SFP+) and 24 x GE (SFP)
Number of Slots	2 MPUs 1 NSP 4 PICs	2 PICs
Power Consumption (in full configuration)	456W (AC)	195W (DC)
Weight	18.1 kg (AC)	9.3 kg (DC)
Dimensions (W x D x H)	175 mm x 442 mm x 220 mm (AC, 4U)	89 mm x 442 mm x 220 mm (2U)
