Universal Vertical Lifting Table Milling Machine X5040

Product Description

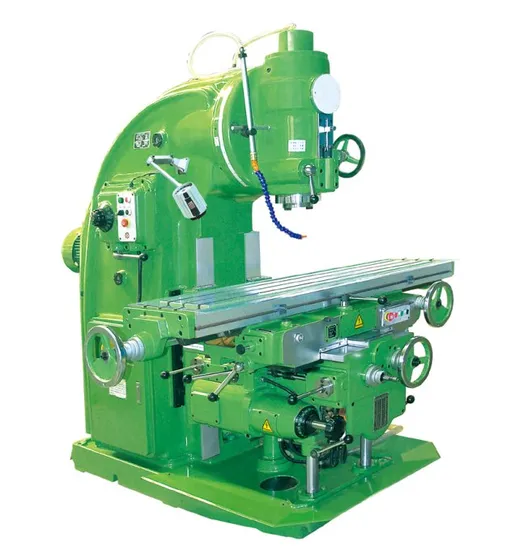

Vertical Milling Machine X5040

power feed on two axes , motorized lift on Z axis, three axes hardened,steel-type strong, good stability.
Specification:

Model No.	X5040
Item No.
Specifications
Table size	1700x400 mm
No,of T-slots	3
Width of T-slots	18 mm
Max load	800 kg
Longitudinal travel(manual/auto)	900/880 mm
Cross travel(manual/auto)	315/300 mm
Vertical travel(manual/auto)	385/365 mm
Rapid feed speed	X:2300,Y:1540,Z:770 mm/min
Table feed range ( X/Y/Z )	23.5-1180/15-786/8-394 mm/min
Spindle
Spindle speed range	30-1500 r/min
Spindle speed step	18 steps
Stroke of spindle quill	85 mm
Max, swivel angle of milling head	±45°
Distance between spindle nose and table surface	115/500 mm
Other
Power of spindle motor	11 kw
Overall dimensions(Lx W x H)	2556x2159x2298
Net weight	4250 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
