Tirfor for Lifting Equipment/Hand Cable Puller 0.8t 1.6t 3.2t 5.4t Lever Wire Rope Hoist

Product Description

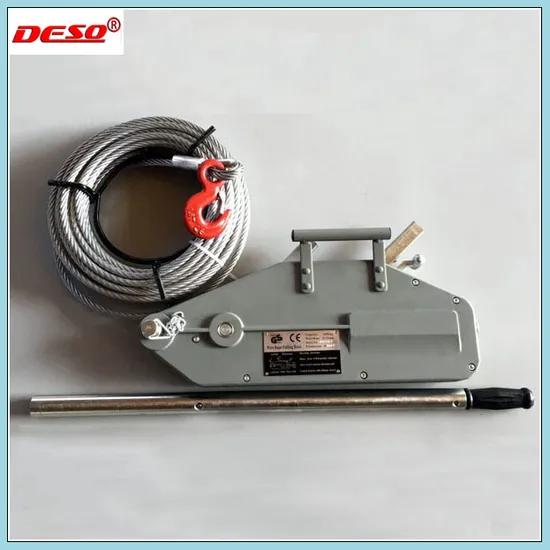

Wire Rope Pulling Hoist / Tirfor
* Small-sized, compact, hand-operated lifting tool
* Housing made of aluminum alloy
* Capacity: 0.8t×20m, 1.6t×20m, 3.2t×20m, 5.4t×20m. wire rope length can be customized.
* All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
* Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
* Overload protection ensures personal safety in operation.
* Built-in shear pins can be replaced without removing the load.
* High quality aluminum body
* Overload protection
* Light in weight, convenient to carry,portable electric winches
* Handle length is adjustable, so it is very convenient to regulate the hand force according to the lifting force.
* Widely used for lifting, pulling, tensioning, and tightening in many areas
* Easy operation, convenient maintenance
Product Show
Multiple Colour AvailableData Sheet

Model		TF-08	TF-16	TF-32	TF-54
Rated Capacity (kg)		800	1600	3200	5400
Rated Forward Handforce (N)		341	400	438	850
Rated Forward Travel (mm)		≥52	≥55	≥28	≥25
Wire Rope Dia (mm)		8.3	11	16	20
Standard Wire Rope Length (m)		20	20	20	20
Wire Rope Safety Factor		5:1	5:1	5:1	5:1
Max Travelling Load (kg)		1200	2400	4000	8100
Net Weight (kg)		6.4	12	23	58
Dimension (mm)	A	44	56	70	90
	B	60	68	98	160
	C	101	120	150	200
	D	420	545	645	935
	E	430	556	666	940
	F	172	200	227	300
	G	240	270	320	410
	L1	80	80	80	88
	L2	/	120	120	135

Shapes For Different Capacity
Packing
Application
Related Products
About Us
FAQ: Q1. Why choose us?
1.We are your one-stop service and solutions provider,certified by ISO9001.
2. Exporting to Europe,USA,Australia,Mid East,Southeast Asia and Africa.
3. Strict quality control and with long term quality inspection contract with CE SGS.
4. Products is underwritten by the China Property Insurance Company(PICC) as quality assurance for customer.
5.Pre-shipment quality inspection for customer by picture/video.
6. Meet Customized requirement on design and logo.
7. Small order acceptable.Can also include other products like wire rope ,rigging into one order.
Q2. How Can I order?
Please send us inquiry here, we will reply you as soon as possible.
Q3. Can I get discounts?
Yes. For big order and Frequent Customers, we give reasonable discount.
Q4. Can you add our own logo on the products?
Yes. We offer the service of adding customers' logo on the product.
We will have a agreement with each other and not supply products with your logo to others.
Q5.OEM and ODM acceptable?
Yes,we can produce according to customer's drawing,sample or requirement.
And can make customer's logo on products and packing according to requirement.

---
