US$30,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Certification
CE, ISO9001: 2000
Matched Excavator Class (Tons)
15-20
Travel Motor Brand and Model
Two Doosan TM40vc
Production Capacity
500PCS/Year
Product Description

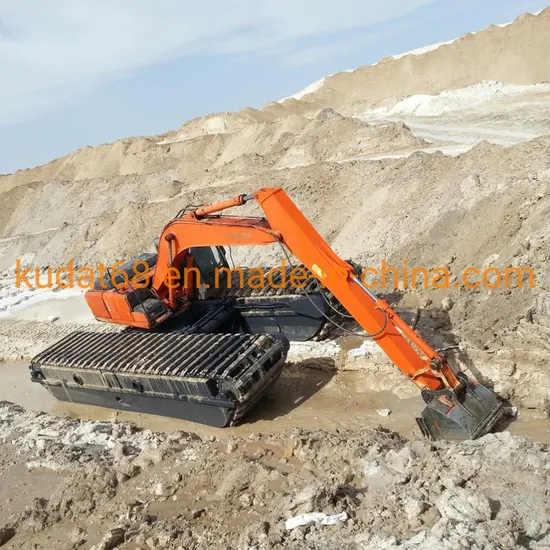

KUDAT standard amphibious excavator undercarriage pontoons including two pieces of pontoons (left &right), one mounting frame and two pieces of connection beams. These standard pontoons can be connected with any type of upper structure,such as Caterpillar, Hitachi, Komatsu, Kobelco, SANY...etc. And all they are only suitable to work on shallow water of depth less than 1.5 meters.
Technical specification of KUDAT standard pontoons:
| Model | KUDAT80PB | KUDAT150PB | KUDAT200PB | KUDAT210P | KUDAT240P | KUDAT240FBP | KUDAT330PB |
| Matched Excavator class (tons) | 6-8 | 10-13 | 15-20 | 18-22 | 23-26 | 23-26 | 30-36 |
A.Length (mm) | 5459 | 7004 | 7531 | 8664 | 9744 | 10134 | 10656 |
B.Width (mm) | 1300 | 1300 | 1420 | 1810 | 1810 | 1700 | 1810 |
C.Height (mm) | 1643 | 1643 | 1885 | 1735 | 1735 | 1800 | 1735 |
D.Overall width(mm) | 4235 | 4235 | 4355 | 5795 | 5795 | 6099 | 5795 |
Chains system | 2 Chains | 2 Chains | 2 Chains | 3 Chains | 3 Chains | 3 Chains | 3 Chains |
| Travel motor brand and model | Two Doosan TM22VC | Two Doosan TM40VC | Two Doosan TM40VC | Two Doosan TM60VC | Two Doosan TM70VC | Two Doosan TM70VC | Four Doosan TM40VC |
| Total weight (kgs) | 9400 | 10100 | 13200 | 20300 | 22800 | 22300 | 26800 |
Optional design of the undercarriage pontoons
Side pontoons and spuds: designed for deep water of depth 2m-5m
The side pontoons and spuds can be selected to install at side of main pontoons in order to work on deep water from 2 meters to 5 meters. Spuds length is designed according to the depth of water.
The spuds move up and down by driving motor and lay down by cylinders. There are two types: full-automatic type and semi-automatic type.
Extendable and retracted pontoons: designed for complete transportation without dis-assembly or narrow working place.
The width of the undercarriage pontoons can be flexible from 4.3m to 5.3m by hydraulic cylinder or mechanically by buckets.
>>
