Hammer Mill Crusher Machine From Shenzhou

Product Description

Product Description
CFSJ Series hammer mill machine is designed and researched by the principle of mixed powder spraying, which is suitable for pharmaceutical, food, chemical industry and other industries, and has a wide range of uses. The crusher machine is simple in structure, easy to install, disassemble and clean in the grinding chamber. All parts in contact with materials in the grinding chamber are made of stainless steel, which is acid and corrosion resistant, so that the crushed materials can meet the health requirements more. The machine has the advantages of convenient movement, stable operation, low noise, good crushing effect and low power consumption.

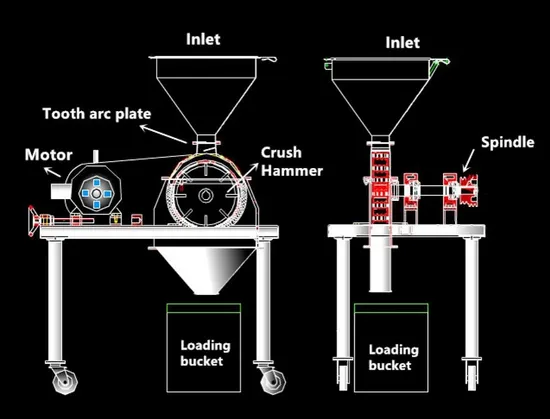

Working Principle
This hammer mill is a high-speed running machine. It uses a fast blade on one side and a four hit blade on the other side, so that the crushed materials can be cut and crushed by a high-speed rotating blade. The machine can also select blades of different shapes and sizes according to different materials, and the particle size can be obtained by changing the screen.
Technical Parameter

Model	Capacity	Discharge product fineness	Motor power	Adjustable speed	Dimensions	Machine weight
	Kg/h	Mesh	Kw	R/min	Mm	Kg
GFSJ-8	10-100	12-120	3	2350-4360	1050×600×1600	150
GFSJ-16	50-800	12-120	7.5	1000-2400-4400	1100×860×1520	250
GFSJ-18	200-1500	12-120	11	1000-2400-4400	1000×1300×1600	320
GFSJ-32	250-2200	12-120	18.5	1000-2400-4400	1280×950×1600	400

---
