Cost-Effective, High Quality High-Speed Low-Power master-slave integrated BLE 5.2 Bluetooth module TS-M1037

Product Details

Product Description

Product Description

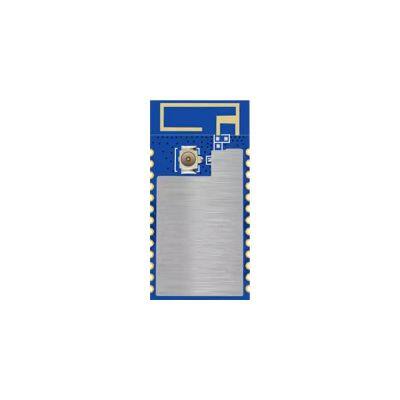

The TS-M1037 is a high-speed, master-slave integrated BLE 5.2 Bluetooth module characterized by its exceptional stability and ultra-low power consumption. It features a default Bluetooth serial port transparent transmission mode, and users can easily modify parameters such as serial port baud rates and device names using the provided AT commands, ensuring flexible and straightforward operation. This module is distinguished by its excellent stability, ultra-low cost, and high reception sensitivity, coupled with minimal power consumption. It is available with either a built-in or an external antenna option, catering to various project needs.
Model No.: TS-M1037
Features
Bluetooth Version: BLE 5.2
Frequency Band: 2.402GHz-2.480GHz ISM band
TX Power: -20dBm~+12Bm
Receive Sensitivity: -96dBm
Air Rate: 250Kbps/1Mbps/2Mbps
Antenna: PCB Onboard / IPEX Antenna
Advise Range: 100m
Memory: 80KB RAM
Size: 26.7*13*2.3mm
Pin/GPIO: 21/13
Power Supply: 2~3.6V
Operating Temperature: -40℃~+85℃
Peripheral Interface: UART/SPI/I2C/ADC
Serial Transparent Transmission Rate: BLE 20KB/s
Applications
Smart home
Location tracking
Intelligent educational equipment
Measurement and monitoring system
Industrial sensors and controls
Medical equipment monitoring and wireless control

---
