Environmental Salt Spray Test Chamber/Nozzle Salt Spray/Cyclic Corrosion Salt Fog Spray Machine

Product Description

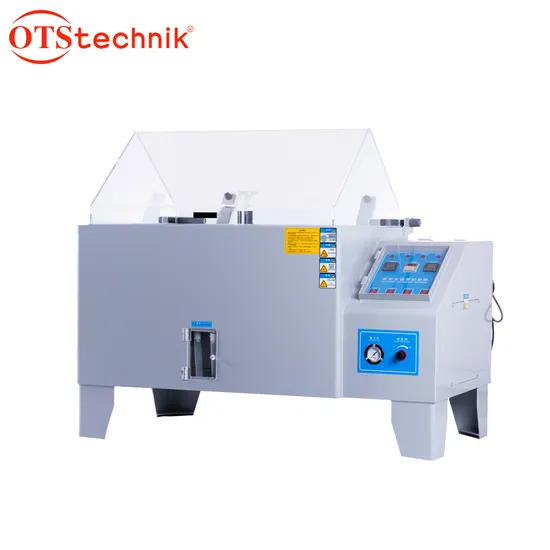

ASTM B117 Laboratory Nozzle Salt Spray Corrosion Test Chamber
Product Description
ASTM B117 Laboratory Nozzle Salt Spray Corrosion Test Chamber is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Specification 1.The Laboratory Nozzle Salt Spray Corrosion Test Chamber is made of transparent materials so that the operator can see the tested sample in it and the spraying situation of the tested sample.
2. A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
3.Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
4.Control System High precision P.I.D. temperature control meter with its error ±0.1°C.

Model	XB-OTS-60	XB-OTS-90	XB-OTS-120	XB-OTS-160	XB-OTS-200
Inner size (cm)	60x45x40	90x60x50	120x80x50	160x100x50	200x100x50
External size(cm)	107x60x118	141x88x128	190x110x140	230x120x140	270x150x150
Inside temp	Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method
	(CASS)50°C±1°C
Brine temp	35°C±1°C 50°C±1°C
Test chamber volume	108L	270L	480L	800L	1440L
Brine chamber volume	15L	25L	40L	40L	40L
Compressed air pressure	1.00±0.01kgf/cm2
Spray volume	1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)
Test room relative humidity	85%RH or more
PH	6.5~7.2 or 3.0~3.2
Spray method	Programmable spray (including the continuous spray interrupted spray)
Power	AC220V1Φ10A	AC220V1Φ15A	AC220V1Φ20A	AC220V1Φ20A	AC220V1Φ30A

Features of The Laboratory Nozzle Salt Spray Corrosion Test Chamber
*Automatic / manual water system has automatically add the water level of the water level is low, the test is not interrupted. Water level is insufficient warning to ensure that the use of safety.
*Precision glass nozzle (PYREX) made of special glass, mist spread evenly and naturally fall on the specimen, and 4000 hours of continuous use, and to ensure that no crystalline salt obstruction.
*Attached double over-temperature protection, over-temperature warning display, and cut off the heater power to ensure that the use of safety.
*Inlet temperature controller using a digital display, PID control, error of ± 0.1 ° C.
*Laboratory using direct steam heating, heating up fast, and even reduce the standby time, heating tubes with high corrosion-resistant titanium tubing.
*Spray tower attached to the conical dispersion, with oriented fog, the function of regulating the amount of fog and uniform loading amount of fog.
*The saturated air barrel using Henry's law, be heated humidification, and provide the required humidity of the laboratory Its made of SUS # 304 stainless steel insulation effect, with visual connectivity and drainage switch, in order to visually saturated air the barrel water level and cleaning.
*With automatic defogging device that can clearly watch the specimen in test chamber.
*Fog sealing sink, water seal to prevent fogging leakage.
*Laboratory sealing cover material for Taiwan imported PVC board, pneumatic cylinder automatic lifting way, easy to operate safe and reliable.
*The import timer using digital display, accurate timekeeping, H. M. seconds S can be segmented set any required test time, adjust the time range from 0.01 seconds to 9999 hours.
* Reagent supplement bottles hidden attached water level viewing window, easy to clean and should not be broken
*Laboratory basket rack using plane indexing rack, can arbitrarily adjust the angle, four off the fog, and the fog direction completely consistent.
Corresponding standard :
*JIS H8502 IEC68-2-11
*IEC68-2-52 1996 GB.10587-89
*CNS.4158 CNS.4159 CASS
* ASTM B-117, B-287,B-380
*JIS D-0201, D-0205, H-8681, Z-2371, K-5400
*DIN50021-75 MIL-STD-750
Details of The Laboratory Nozzle Salt Spray Corrosion Test Chamber
Packing & Shipping
1.Strong standard wood case, inner plastic films wrapped for Nozzle Salt Spray Corrosion Test Chamber 2. Usually we delivery the equipment by air,by sea or by express. it depends on customer.
Our Company
Our Services
We are here to help you. Services available: Replacement manuals
Consumables and replacement parts On-site maintenance and repair Warranty support Over-the-phone service support and advice If you have an OTS chamber , we will do our best to help you in whatever way we can.
Manuals: PDF files of manuals for current models are available free. Please contact us to request a copy. Older and printed copies at additional charge.
Service repair: We prefer you contact us direct at the factory with any problems you may be experiencing. We help diagnose the problem, arrange for any needed parts, and schedule a technician to do the repairs. Rarely can a local contractor get all that done for you as quickly as we can. We also guarantee the work
RFQ:
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping , you just need link power in your lab, then can start to operate
Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it
Thirdly, some of customized chambers we should to install and teach your team to operate .

---
