Plastic PE/PVC/PPR/HDPE/LDPE/CPVC/UPVC Pipe/ Tube/ Profile Extruder/ Single Screw/ Conical Twin/Double Screw Extruder Parallel Extrusion Machine

Product Description

Description of Twin Screw Extruder:
The Twin Screw Extruder are mainly used for the processing of the soft/hard PVC pipe, PVC foaming board, PVC sheet, PVC Profile, PVC Trunk, PVC Roof tile, PVC Pelletizing and other polyolefin products, especially the direct processing of the plastic/powder materials.
Twin Screw Extruder is applicant for PVC powder material, with different mould and downstream equipment; the plastic extruder can produce pipe, profile, plate& sheet, and pelletizing. The extruder features in good plastic extrusion, good plasticization, even melting, high output capacity, wide application and reliable stability, specially designed gearbox and distributor and reinforced thrust bearing realize large transmission torque and long operation time. Electrical control system: Siemens PLC auto control system or Omron temperature control, and ABB Invert/transducer, Siemens contactor, and several alarm system.
Main Parameter of Twin Screw Extruder:

Extruder Model	Screw Dia(mm)	Motor(kw)	Max.Output(kg/h)	Center Height(mm)	Speed(r/min)
SJZ45	45/90	15	120	1000	45
SJZ51	51/105	18.5	150	1000	45
SJZ55	55/110	22	180	1000	45
SJZ65	65/132	30/37	300	1000	45
SJZ80	80/156	55	450	1100	34.7
SJZ92	92/188	110	900	1200	34.7
SJZ110	110/220	160	1400	1200	32

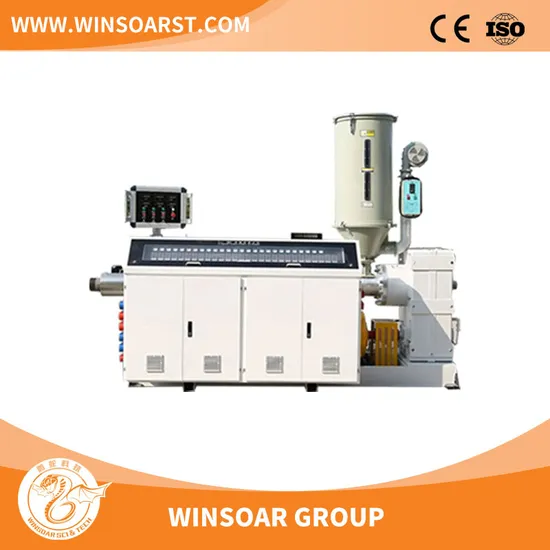

Description of Single Screw Extruder:
The single screw extruder can process all kind of plastics products with auxiliary machines concerned, such as film, pipe, stick, plate, thread ,ribbon, insulating layer of cable, hollow products and so on .It is also used in graining. The machine design is advanced, production capacity is high, plasticization is good, and energy consumption is low. The extruder adopts hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on.
Main Parameter of Twin Screw Extruder:
L/D=33:1 SERIES

Extruder Model	Screw Dia(mm)	L/D Ratio	Max. Output(kg/h)	Center Height(mm)	Power(kw)
WS45/33	45	33:1	150	1000	37
WS65/33	65	33:1	300	1000	75
WS75/33	75	33:1	450	1100	110
WS90/33	90	33:1	600	1100	160
WS120/33	120	33:1	950	1100/1300	280
WS150/33	150	33:1	1350	1300	400

L/D=38:1 SERIES

Extruder Model	Screw Dia(mm)	L/D Ratio	Max. Output(kg/h)	Center Height(mm)	Power(kw)
WS45/38	45	38:1	220	1000	55
WS60/38	60	38:1	450	1000	110
WS75/38	75	38:1	600	1100	160
WS90/38	90	38:1	800	1100	220
WS105/38	105	38:1	1150	1100	315
WS120/38	120	38:1	1600	1300	450
WS150/38	150	38:1	2250	1500	630

---
