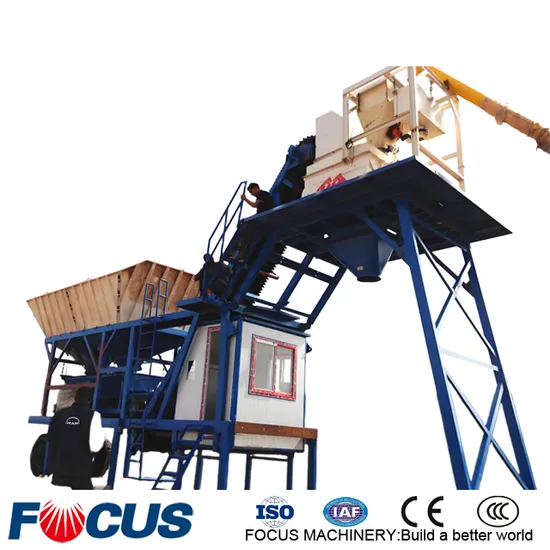

Factory Price! ! ! Mobile Concrete Mixing Plant/Towable Concrerte Mixing Tower

Product Description

Factory Price! ! ! Mobile Concrete Mixing Plant/Towable Concrerte Mixing Tower
FOCUS Mobile Concrete Mixing Plant/Towable Concrerte Mixing Tower:1. automatic computer control, accurate dosing;2.SICOMA concrete mixer;3.SIMENS PLC;4.SCHNEIDER electrical.
Why would our clients choose FOCUS mobile concrete mixing plant?
FOCUS MACHINERY boasts an award-wining mobile concrete mixing plant / towable concrete mixing tower product range with capacity from 25cbm to 75cbm hourly.
This series of mobile concrete plant adopts semi-pulling structure with running system and equipped with standard coupling pin, hence can be dragged by a tractor at the maximum speed of 40km/h.
As uniquely and compactly designed it is, this mobile concrete mixing plant / towable concrete mixing tower assembles whole functions of accurate material weighing, efficient aggregate conveying, homogeneous mixing, computer auto-controlling and trailing. It is the ideal concrete plant for projects that require frequent removal from one site to another.
What are the main features of FOCUS mobile concrete mixing plant/towable concrete mixing tower?
1. Complete mobile unit:
Unit easily transported on-site as well as from project to project, on-board hydraulic system changes plant from travel mode to full operational within 2-3 hours for this mobile concrete plant.
2. Reliability of mix consistency:
Computer and manual dual control mode can be converted easily by a simple switch, twin-shaft mixer offers this mobile concrete mixing plant a consistent high grade of evenly mixed material, with its good quality mixing blades, paddles, arms and liners.
3. Highly precise dosing of water, cement, fly-ash, additive
Focus towable concrete mixing plant dosing is realized by three-point suspension sensors, and they are all metered separately.
4. Optimized and modular design
FOCUS mobile mixing plant is convenient either for container transport or for towing vehicles.

Model		YHZS25	YHZS35	YHZS50/60	YHZS75
Output capacity		25³/h	35³/h	50³-60³/h	75³/h
Overall power		40kw	60kw	85kw	105kw
Discharge height		3800mm
Max. hauling speed		40km/h
warranty		13months after commissioning
After-sale service		Guidance on erecting, commissioning and operator training, 24/7 technical assistance afterwards
Concrete mixer		JS500	JS750	JS1000	JS1500
Motor power		18.5kw	30kw	18.5kwX2	30kwX2
Max. aggregate dia.		80mm
Aggregate batcher		PLD800	PLD1200	PLD1600	PLD2400
Aggregate weighing precision		±2%
Aggregate feeder		Belt conveyor
Other scale scope	Cement	±1%
	water	±1%
	additive	±1%
Control system		Auto computer control, 1 set
Pneumatic system		1 set

Nossa mistura de concreto móvel plantas / rebocável concete mistura torres estão sendo comprados, instalados e operados em todo o mundo:
Thanks for visiting, by the time you are paying attention to us, our mobile concrete mixing plants are being delivered /distributed to the world everyday - it'll be such a great honor if you can join us.

---
