Basic Info.
Power Type
Permanent-magnet DC
Applicable Environment
Beach
Transport Package
Carton and Pallet
Production Capacity
10000 Sets Per Month
Product Description
Pure copper motor and power cable, Smooth and reliable all-metal three-stage planetary gear train

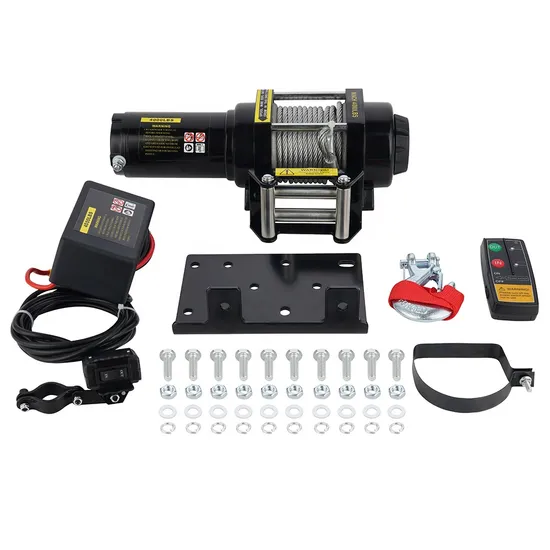

Rated line pull of 4000 lbs 1.74HP permanent magnetic motor 3-Stage planetary gearing with 135:1 ratio Sealed solenoid with circuit breaker Easy to engage ergonomic freespool control knob Wire rope measures 5.4mm x 10.5m Heavy-duty, clevis pinned, latched hook 4-way roller fairlead One year warranty 4000LBS WINCH SPECIFICATIONS
| Rated line pull | 4000lbs (1814kgs)single line |
| Motor | Permanent magnet, 1.3kw/1.74 hp |
| Gear reduction ratio | 135:1 |
| Gear train | 3 Stage Planetary |
| Cable (Dia x L) | Diameter0.21"(5.4mm)Length34.4'(10.5m) |
| Control | Remote switch |
| Drum size (Dia x L) | Dimaeter2.0"(51mm)Length2.9"(74mm) |
| Clutch | Sliding Ring Gear |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 348mmx110mmx112mm |
| Mounting bolt pattern | 120mm*76mm,Ø9 |
| Weight | N.W. 10 kg G.W. 11 kg |
| Packing size | 400mmx340mmx200mm 1PC/CTN |
PULL, SPEED, AMPERES, VOLTS
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 9.5(2.9) | 26 |
| 1000(454) | 8.5(2.6) | 64 |
| 2000(907) | 7.2(2.2) | 98 |
| 3000(1361) | 5.2(1.6) | 148 |
| 4000(1814) | 3.6(1.1) | 170 |
LINE PULL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull
lbs(kgs) | Total Rope on Drum
ft(m) |
| 1 | 4000(1814) | 4.9(1.5) |
| 2 | 3250(1474) | 14.4(4.4) |
| 3 | 2200(998) | 19(5.8) |
| 4 | 1700(771) | 26.6(8.1) |
| 5 | 1600(726) | 34.4(10.5) |
>>
