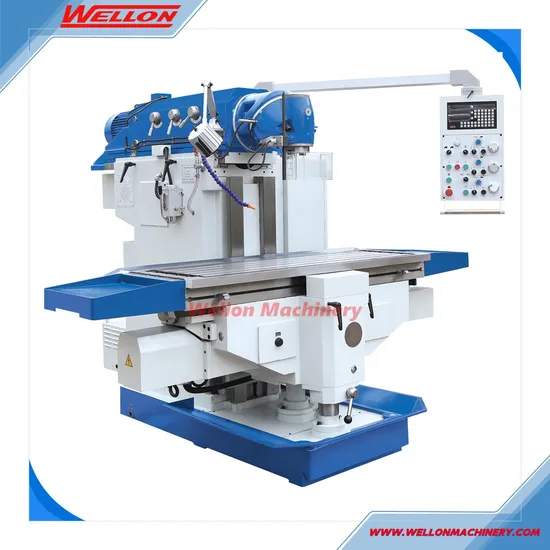

Heavy Duty Milling Machine X5750 X5750A Universal Milling Machine Made in China

Product Description

Product Description
Products Description:
heavy duty milling machine X5750 X5750A universal milling machine made in China Product Parameters
Performence Features:
a,Table 3 axes with ball screws, high precision
b,Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
C,Mechanical change speeds in head stock, powerful milling
D,Table with an extra supporting column, big load, high accuracy
E,It can mill any angle surface through front half-sphere by swiveling milling head
F,Optional can be install CNC Controller: such as Siemens808D, Siemens828D....... Technical parameter:

Specifications	Unit	X5750	X5750A
Table size	mm	500*1600	500*2000
T-slots(NO./width/pitch)	mm	5/18/80
Table travel (X/Y/Z)	mm	1200*700*500	1400*700*500
Swivel angle of milling head		360
Spindle taper		ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	50-550
Distance from spindle center line to column	mm	45-745
Main motor power	KW	7.5
Feed motor	NM	AC servo motor X/Y:15NM; Z: 18NM
Max load	KG	1800
Overall size	mm	2625*2460*2080	2625*2860*2080
weight	KG	5000	5500

Standard Accessories:
Electronic hand wheels
Draw bar
Coolant device
Coolant tray
LED machine light
Universal mill head
Spindle brake
Ball screws in all axis
Automatic central lubrication
Mill arbors
Tools
Optional Accessories:
3-axis digital readout
Mill chuck set
Machine vice
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head
CNC Controller Siemens, Fanuc
