Product Details
Product Description
Product Description
DESIGNED FOR:

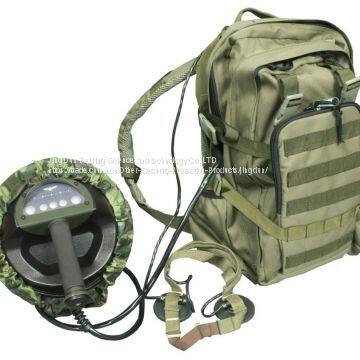

Detection of mines and explosive device with electronic fuses (activation system) concealed on the ground surface, slightly in the ground (snow), under the road pavement and within various facilities.
Detects:
• communicational transmitters & receivers as well as alarm and remote control system facilities;
• electronic and electromechanical timers;
• acoustic, magnetic, optoelectronic sensors and midget TV cameras;
• built-in metal-ware as well as hidden machinery and appliances;
• domestic electronic units and alpine skiing in snow traps.
APPLICATION:
• roads, terrain and objects inspection for mines, improvised explosive devices (IED) and other explosive appliances with electronic components
• searching for hidden caches with weapons, ammunition, explosive devices and communication facilities
• questioned items investigation, searching for subversive and terrorist devices and arrangements
ADVANTAGES:
√ extended detection range
√ electronic facilities localization in any operational mode: active, ‘stand-by’ or even switched off installed behind walls, fences, etc.
√ equipment design allows its usage in tactical airborne missions
√ efficient use in search/reconnaissance missions
√ high searching rate
√ safe to handle, user-friendly design
√ extended continuous operational time without battery replacement
√ long-term operation facility in field conditions
Technical information
| Probing signal | Pulse |
| Receiver | 2-channel (2nd and 3rd harmonic) |
| Output power (average / peak) | 0.15W / 200W |
| Indication: |
|
| - visual | LED-display |
| - audio | headphones |
| Power supply | Ni-Cad battery, 6V/7Ah |
| Start-up time | not more than 5min |
| Continuous operation time with one fresh battery (under normal environmental condition) | not less than 8h |
| Operation temperature range | -30ºC…+50ºC |
| Weight (ready for operation/in standard packing) | 5.1kg/12.0kg |
>>
