Industrial VPN 5g Nr SIM Card Wireless WiFi Router with SIM Card Slot

Product Description

Product Description

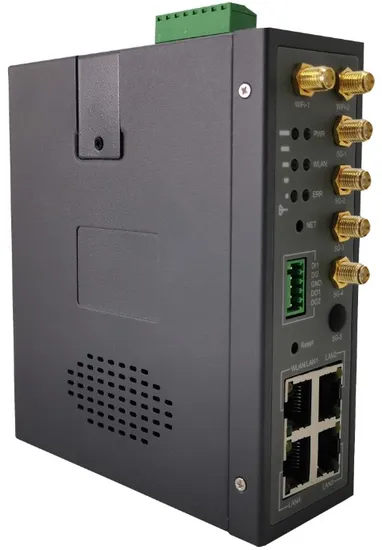

G51-M5 Industrial Vpn 5g nr Sim Card Wireless Wifi Router With Sim Card Slot
G51-M5 5G Broadband Router is a kind of internet of things wireless communication router. It uses 5G/LTE-FDD/LTE-TDD/HSPA+ industrial module, to provide convenient and high speed network transmission function.

This series of product uses industrial grade high performance MIPS1004Kc Dual Core communication processor, and embedded real-time operation system as software supporting platform. It provides safe, high speed, stable 5G/4G wireless network, and provides 4 gigabit Ethernet, RS-485/232 and 2.4G/5G WIFI interface.

It can be used in bus Wi-Fi, finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor.etc

Product Parameters Industrial design:
Use high performance industrial wireless module
Use high performance industrial MIPS 1004Kc Dual Core processor
Support low power consumption, include sleep mode, timing online and offline mode, timing switch on and off mode
Use plate metal CRS shell, with good heat dissipation
Power supply:+7.5V~32V DC(48V DC extendable)
Degree of protection:IP34(can be extended to IP51)

Network characteristic:
Port flow detection
Link real time monitoring
Multiple VPN protocol(PPTP, L2TP, IPSec, GRE, VPN)
Support serial port DTU function
Support dial as required(audio, SMS, data trigger)
Support UPnP

Stability:
Soft and hardware watchdog and multilevel link detection, with the capability of fault automatic diagnosis and automatic recovery, to ensure device working on stable and safe way
Multiple-mechanisms of equipment self-checking, to ensure link unimpeded and alarming
ESD protection for each port, to prevent static shock
Wireless network signal indicator light(NET)

Software:
HOMTECS OS
OEM OS
OpenWRT OS

Remote management:
Remote parameter configuration
Remote parameter backup
Remote reboot and log query
Remote upgrading
Remote online monitoring

Applications:
Support Sub6 5G, 4G(FDD and TDD) LTE network, down compatible for 3G network
Support 4x gigabit Ethernet, provide RS-232 / RS-485
Support WIFI(IEEE802.11n / 802.11ac)
Support wire and wireless backup
Support hardware WDT, provide anti-log off mechanism to ensure data terminal online forever
Support PPTP, L2TP, GRE etc. multiple VPN
Support SNMP management protocol
Support Wi-Fi forced AD pushing function
Support multiple functions (DHCP, DDNS, firewall, NAT, DMZ host etc.)
Support ICMP, TCP, UDP, Telnet, FTP, HTTP, HTTPS etc.
Industrial Drawer Dual SIM/UIM Card design, support hot plugging

Extended functions:
Single module dual SIM[optional]
GPS/Beidou orientation[optional]
USB internal storage extension, 8GB-256GB[optional]
Support WAN, wireless and wire backup/failover[optional]

Wireless
Wireless module:	Industrial grade
Bands:	5G Band: N1/N2/N3/N5/N7/N8/N12/N20/N25/N28/N40/N41/N66/N71/N77/N78/N79 FDD-LTE Band: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/ B30/B32/B66/B71 TDD-LTE Band: B34/B38/B39/B40/B41/B42/B43/B48
Theory bandwidth:	900Mbps UL; 2.1Gbps DL
Transmitted power:	<23dBm +/-1dB @25ºC
Consumption:	data<850mA/12V;idle <600mA/12V(WiFi is enabled default)
Receive sensitivity:	<-97dBm @10MHz QPSK

WIFI
Bandwidth:	IEEE802.11n/802.11ac standard, 2.4G 300Mbps / 5G 867Mbps(optional)
Security encryption:	WEP, WPA, WPA2, WPS(optional)
Transmitted power:	17-18dBm(11g), 18-20dBm(11b), 15dBm (11n ), 17-18dBm(11ac)
Receive sensitivity:	2.4G: <-72dBm@54Mpbs,<-64dBm@HT20 MCS7 ,<-61dBm@HT40 MCS7 5G: <-64dBm@HT20 MCS7,<-61dBm@HT20 MCS7,<-55dBm@VHT80 MCS9

Interface
LAN/WAN:	4x Gigabit Ethernets(RJ45 port), 4x LAN or 3x LAN + 1x WAN, self-adaption MDI/MDIX, built-in electromagnetic isolation protection
Industrial interface:	1 x RS232, 1 x RS485 port, apply to the collecting equipment which comes with RS485/RS232 interface
Indicator light:	4 X "LAN", "PWR", "WLAN", "ERR", "NET"
Antenna interface:	7 x SMA interface(5G-1;5G-2;5G-3;5G-4;5G-5; Wi-Fi-1;Wi-Fi-2),50ohm
SIM/UIM interface:	Industrial Dual SIM/UIM card design, 1.8V/3V automatic detection
Power interface:	7.5V~32V interface terminals, standard DC connectors and on-board terminals, no-polarity
Reset:	Parameters can be restored to the factory

Power supply Standard power:DC 12V/2A, non-polarity Appearance Shell:aluminum profiles Dimension:132×112×44mm Weight: about 480g

Others CPU:MIPS 1004Kc Dual Core - 880MHz Flash/RAM:32Mb /256Mb DDR3 Working temperature:-30~+75ºC Storage temperature:-40~+85ºC Relative humidity:< 95% non condensing
